DTM06-08SA | DEUTSCH

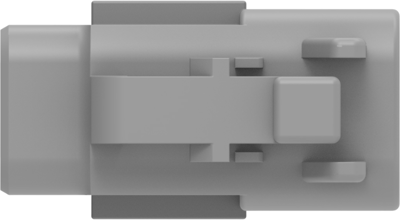

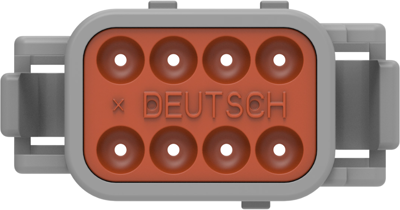

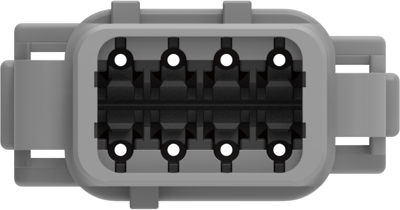

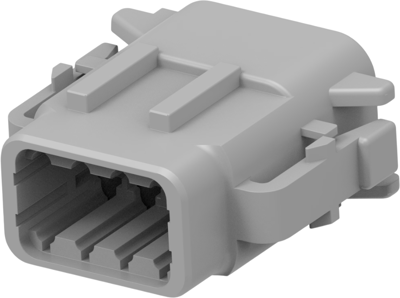

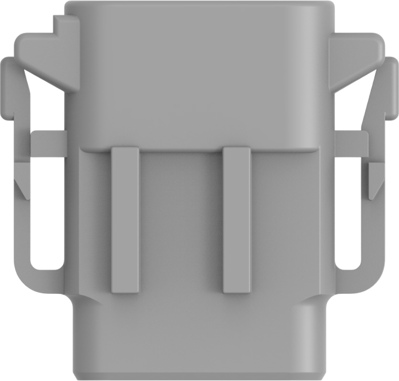

Socket, unequipped, 8 pole, straight, 2 rows, gray, DTM06-08SA
Unit Price (€ / pc.)
4.0698 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.6652 €
50 pcs.
3.3082 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale
Housing terminals, DTM06-08SA, DEUTSCH
Housing for female terminals, Wire-to-wire, 8 Position, 4.19 mm Centerline, Sealable, Gray, Wire & cable, Power & signal, Hybrid
Technical specifications
| Version | straight | |
| Colour | gray | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| Pin number | 8 pole | |
| Connection | crimp connection | |
| Grid | 4.19 mm | |
| Number of rows | 2 | |
| Rated current | 7.5 A | |
| Contact type | socket | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389099 |
| Country of origin | TW |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
