FM24CL64B-GTR | Cypress

FRAM FM24CL64B-GTR

Order No.: 53S4014
MPN:
FM24CL64B-GTR
Series: FM24CL
FM24CL64B-GTR Cypress Memory ICs

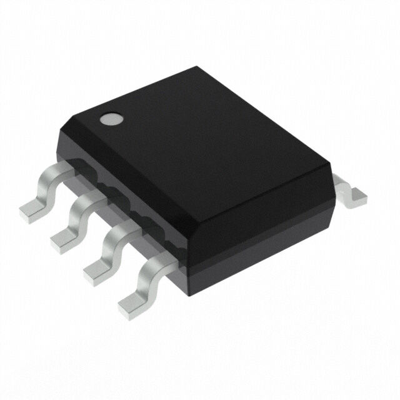

Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available in 5 Days: 8,465 pcs. - if ordered today
Total Price:
4.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
0.9639 €

High-Density 64 kBit I²C F-RAM , FM24CL64B-GTR, Cypress

The FM24CL64B-GTR is a 64-Kbit nonvolatile memory utilizing advanced ferroelectric technology, providing reliable data retention for 121 years. With write operations at bus speed and substantial write endurance, it is ideal for applications needing frequent or rapid writes, such as data logging and industrial controls. This F-RAM device offers a superior alternative to EEPROM, addressing complexities and reliability issues while enabling efficient and low-power write operations.

Features

  • NoDelay writes
  • Advanced high-reliability ferroelectric process
  • Fast 2-wire Serial interface (I2C)
  • Direct hardware replacement for serial (I2C) EEPROM
  • Supports legacy timings for 100 kHz and 400 kHz
  • Low power consumption

Applications

  • Automotive head unit
  • Consumer electronics
Technical specifications
Filter Property Value
Enclosure SOIC-8
Assembly SMD
Memory size 64 kbit
Voltage 2.7-3.65 V
Access time 550 s
Clock frequency 1 MHz
Technology FRAM
min. operating temperature -40 °C
max. operating temperature 85 °C
Logistics
Property Value
Customs tariff number 85423290
MSL MSL 3
Original Packaging Reel with 2,500 pieces
Compliance
Property Value
Date of RoHS guidelines 6/8/11
SVHC free Yes
RoHS conform Yes
