FM24CL16B-GTR | Cypress

FRAM FM24CL16B-GTR

Order No.: 53S4013
MPN:
FM24CL16B-GTR
Series: FM24CL
FM24CL16B-GTR Cypress Memory ICs

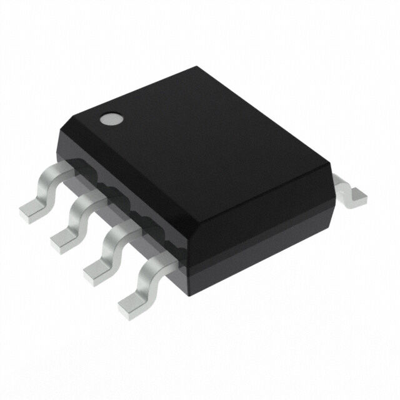

Image may differ
Unit Price (€ / pc.)
1.1424 € *
Available in 5 Days: 4,260 pcs. - if ordered today
Total Price:
5.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
1.1424 €

High-Density 16 kBit I²C F-RAM , FM24CL16B-GTR, Cypress

The FM24CL16B-GTR is a high-performance 16-Kbit F-RAM, providing 151-year data retention, rapid bus-speed write operations, and exceptional write endurance. It offers reliable data storage with lower power consumption and significantly higher write cycles compared to EEPROM.

Features

  • NoDelay writes
  • Advanced high-reliability ferroelectric process
  • Fast 2-wire Serial interface (I2C)
  • Direct hardware replacement for serial (I2C) EEPROM
  • Low power consumption
  • Restriction of hazardous substances (RoHS) compliant

Applications

  • Automotive head unit
  • Central inverter solutions
Technical specifications
Filter Property Value
Enclosure SOIC-8
Assembly SMD
Memory size 16 kbit
Voltage 2.7-3.65 V
Access time 550 s
Clock frequency 1 MHz
Technology FRAM
min. operating temperature -40 °C
max. operating temperature 85 °C
Logistics
Property Value
Customs tariff number 85423290
Original Packaging Reel with 2,500 pieces
MSL MSL 3
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 6/8/11
