D2475-10 | CRYDOM
Solid state relay, 24-280 VAC, instantaneous switching, 3-32 VDC, 75 A, PCB mounting, D2475-10
Unit Price (€ / pc.)
107.6712 € *
Available: 0 pcs.
Available in 5 Days: 26 pcs.
Leadtime: 1 Week **
Total Price:
107.67 € *
Price list
Quantity
Price per unit*
1 pcs.
107.6712 €
5 pcs.
89.1548 €
*incl. VAT plus shipping costs
**Subject to prior sale

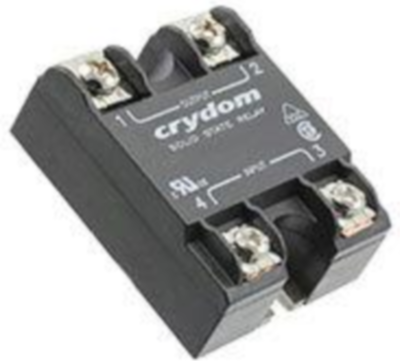

Solid State Relay, D2475-10, CRYDOM
Solid State Relay, Panel Mount, IP00, 280VAC/75A, 3-32VDC In, Instantaneous
Features
- Ratings from 10A to 125A @ 24-280 VAC
- SCR output for heavy industrial loads
- Zero voltage or instantaneous turn-on outputs
- UL/CSA/VDE Approved, CE Compliant to EN60950-1
- Improved SEMS screw and washer
- Redesigned housing with anti-rotation barriers
- AC or DC control
- Direct bond copper substrate
- EMC compliant to Level 3
- Direct power lead frame
Technical specifications
| LED display | No | |
| Assembly | PCB mounting | |
| Rated current | 75 A | |
| Switching Mode | instantaneous switching | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Voltage | 3-32 VDC | |
| Control Voltage | 24-280 VAC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
