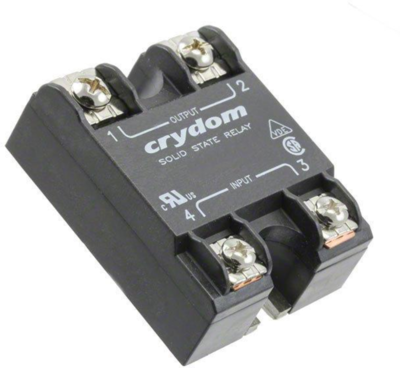

D24125 | CRYDOM
Solid state relay, 280 VAC, zero voltage switching, 3-32 VDC, 125 A, PCB mounting, D24125
Unit Price (€ / pc.)
169.3608 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Total Price:
169.36 € *
Price list
Quantity
Price per unit*
1 pcs.
169.3608 €
4 pcs.
162.5778 €
7 pcs.
159.1982 €
14 pcs.
155.8186 €
20 pcs.
152.4271 €
*incl. VAT plus shipping costs
**Subject to prior sale
Solid State Relay, D24125, CRYDOM
Solid State Relay, Panel Mount, IP00, 280VAC/125A, 3-32VDC In, Zero Cross
Features
- Ratings from 10A to 125A @ 24-280 VAC
- SCR output for heavy industrial loads
- Zero voltage or instantaneous turn-on outputs
- UL/CSA/VDE Approved, CE Compliant to EN60950-1
- Improved SEMS screw and washer
- Redesigned housing with anti-rotation barriers
- AC or DC control
- Direct bond copper substrate
- EMC compliant to Level 3
- Direct power lead frame
- Epoxy free design
Technical specifications
| LED display | No | |
| Assembly | PCB mounting | |
| Rated current | 125 A | |
| Switching Mode | zero voltage switching | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Voltage | 3-32 VDC | |
| Control Voltage | 280 VAC |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
