HHXC350ARA271MJA0G | Chemi-Con

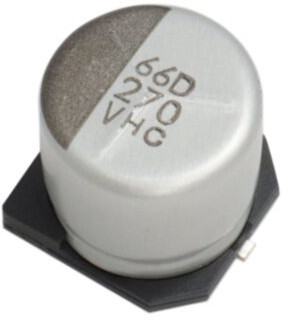

Polymer hybrid aluminum electrolytic capacitor, SMD, 270 µF, 35 V, ±20 %, HHXC350ARA271MJA0G
Unit Price (€ / pc.)
1.9635 € *
Available: 50 pcs.
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
10 pcs.
1.2614 €
100 pcs.
0.9758 €
500 pcs.
0.7735 €
1000 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive polymer hybrid, HHXC350ARA271MJA0G, Chemi-Con
The HHXC350ARA271MJA0G is a conductive polymer hybrid aluminum electrolytic capacitor with high reliability and high voltage realized by hybrid electrolyte.
For high temperature and high reliability applications like automotive equipment, base station equipment, etc.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 10 mm | |
| Ripple current | 2 A | |
| max. operating temperature | 125 °C | |
| Rated voltage (DC) | 35 V | |
| Length | 10 mm | |
| Capacity | 270 µF | |
| Design | SMD | |
| min. operating temperature | -55 °C | |
| Tolerance | ±20 % | |
| ESR (Equivalent Series Resistance) | 20 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
