MP9100-75.0-1% | Caddock
Power metal film resistor, 75 Ω, 100 W, ±1 %, MP9100-75.0-1%
Unit Price (€ / pc.)
10.6862 € *
Standard delivery time from the manufacturer is: 12 Weeks

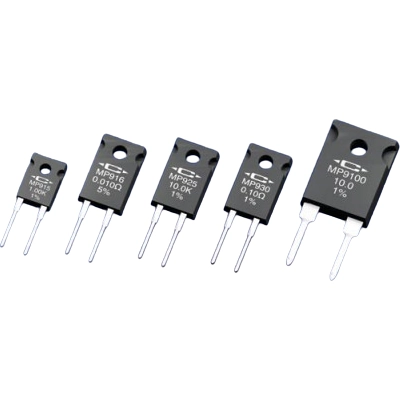

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.
Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface
Rated load 100 W, type MP 9100.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 75 Ω | |

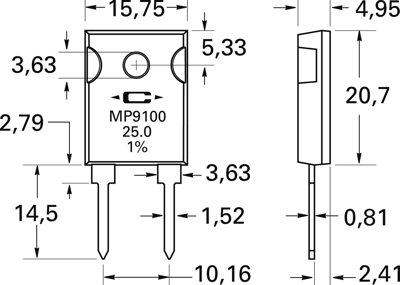

| Width | 4.95 mm | |
| Tolerance | ±1 % | |
| Temperature coefficient | -20/80 ppm/K | |
| max. operating temperature | 175 °C | |
| Power | 100 W | |
| min. operating temperature | -55 °C | |
| Version | power metal film resistor | |
| Assembly | THT | |
| Design | radial | |
| Height | 20.7 mm | |
| Length | 15.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 25 pieces |
| Country of origin | US |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
