Caddock

MP9100-0.20-1% | Caddock

Power metal film resistor, 200 mΩ, 100 W, ±1 %

default S
default L

Active

Total price
( 17.2550 € * / pcs.)
17.26 €
Available: 20 pcs.
Quantity
Price per unit*
1 pcs.
17.2550 €
10 pcs.
15.8151 €
25 pcs.
14.5894 €
50 pcs.
13.5422 €
250 pcs.
12.6616 €
*incl. VAT plus shipping costs
Show 13 variants
Description

Product by Caddock at Bürklin Elektronik

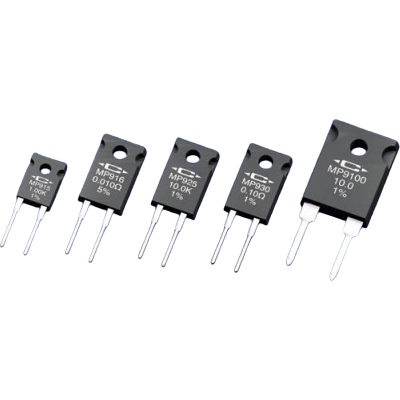

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 100 W, type MP 9100.

Technical specifications
ohmic resistance 0.2 Ω
Version power metal film resistor
Design radial

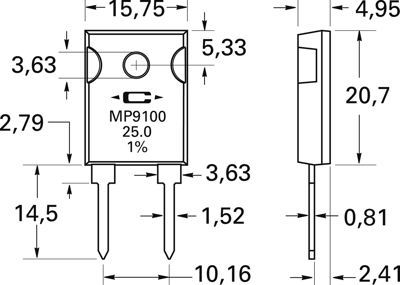

Width 4.95 mm
Height 20.7 mm
Length 15.75 mm
Power 100 W
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
Temperature coefficient 0/+200 ppm/K
Tolerance ±1 %
Show similar products (0)
Logistics
Country of origin US
Customs tariff number 85332900
Original Packaging Bar with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item in 13 variations
Item description
Price list
Total
Design
ohmic resistance
Version
Width
Length
Tolerance
Height
Assembly
min. operating temperature
max. operating temperature
Power
Power metal film resistor, 50 mΩ, 100 W, ±1 %
Order No.:
 60E750
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-0.050-1%
25 pcs.
17.2312 €
17.23 € *
Currently not in stock, we will order for you
radial
0.05 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 50 Ω, 100 W, ±1 %
Order No.:
 60E768
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-50.0-1%
1 pcs.
13.2804 €
5 pcs.
12.5902 €
10 pcs.
11.9714 €
25 pcs.
11.4121 €
75 pcs.
11.0670 €
13.28 € *
Available: 150 pcs.
Next delivery: 50 pcs. on 2023-08-24
radial
50 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 5 Ω, 100 W, ±1 %
Order No.:
 60E760
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-5.00-1%
1 pcs.
15.7794 €
10 pcs.
14.4466 €
25 pcs.
13.3518 €
50 pcs.
12.3879 €
250 pcs.
11.5668 €
15.78 € *
Available: 35 pcs.
radial
5 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 100 mΩ, 100 W, ±1 %
Order No.:
 60E752
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-0.10-1%
1 pcs.
17.2550 €
10 pcs.
15.8151 €
25 pcs.
14.5894 €
50 pcs.
13.5422 €
250 pcs.
12.6616 €
17.26 € *
Available: 59 pcs.
radial
0.1 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 200 mΩ, 100 W, ±1 %
Order No.:
 60E753
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-0.20-1%
1 pcs.
17.2550 €
10 pcs.
15.8151 €
25 pcs.
14.5894 €
50 pcs.
13.5422 €
250 pcs.
12.6616 €
17.26 € *
Available: 20 pcs.
radial
0.2 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 20 Ω, 100 W, ±1 %
Order No.:
 60E764
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-20.0-1%
1 pcs.
16.1364 €
5 pcs.
15.2201 €
10 pcs.
14.4109 €
25 pcs.
13.6850 €
16.14 € *
Available: 265 pcs.
radial
20 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 1 Ω, 100 W, ±1 %
Order No.:
 60E756
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-1.00-1%
1 pcs.
15.7794 €
10 pcs.
14.4466 €
25 pcs.
13.3518 €
50 pcs.
12.3879 €
250 pcs.
11.5668 €
15.78 € *
Available: 8 pcs.
radial
1 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 2 Ω, 100 W, ±1 %
Order No.:
 60E758
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-2.00-1%
1 pcs.
13.9706 €
5 pcs.
13.2566 €
10 pcs.
12.6021 €
25 pcs.
12.0071 €
75 pcs.
11.6501 €
13.97 € *
Available: 485 pcs.
radial
2 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 10 Ω, 100 W, ±1 %
Order No.:
 60E762
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-10.0-1%
1 pcs.
14.8512 €
5 pcs.
14.0896 €
10 pcs.
13.3875 €
25 pcs.
12.7687 €
75 pcs.
12.3760 €
14.85 € *
Available: 25 pcs.
Next delivery: 25 pcs. on 2023-06-09
radial
10 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 25 Ω, 100 W, ±1 %
Order No.:
 60E766
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-25.0-1%
25 pcs.
12.3879 €
12.39 € *
Currently not in stock, we will order for you
radial
25 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 75 Ω, 100 W, ±1 %
Order No.:
 60E770
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-75.0-1%
1 pcs.
13.0067 €
10 pcs.
11.9119 €
25 pcs.
11.0075 €
50 pcs.
10.2340 €
250 pcs.
9.5319 €
13.01 € *
Available: 17 pcs.
radial
75 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 100 Ω, 100 W, ±1 %
Order No.:
 60E772
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-100-1%
1 pcs.
14.1134 €
5 pcs.
13.3875 €
10 pcs.
12.7211 €
25 pcs.
12.1261 €
75 pcs.
11.7572 €
14.11 € *
Available: 90 pcs.
Next delivery: 75 pcs. on 2023-04-13
radial
100 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
Power metal film resistor, 500 mΩ, 100 W, ±1 %
Order No.:
 60E754
Manufacturer:
 Caddock
Manufacturer SKU
 MP9100-0.50-1%
25 pcs.
16.422 €
16.42 € *
Currently not in stock, we will order for you
radial
0.5 Ω
power metal film resistor
4.95 mm
15.75 mm
±1 %
20.7 mm
THT
-55 °C
175 °C
100 W
*incl. VAT plus shipping costs
