MP9100-10.0-1% | Caddock

Power metal film resistor, 10 Ω, 100 W, ±1 %, MP9100-10.0-1%

Order No.: 60E762
EAN: 4099879697240
MPN:
MP9100-10.0-1%
Series: MP9100
Caddock
MP9100-10.0-1% Caddock Wirewound Resistors Image 1
MP9100-10.0-1% Caddock Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
19.0400 € *
Available: 31 pcs.
Leadtime: 10 Weeks **
Total Price:
19.04 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0400 €
25 pcs.
16.7552 €
50 pcs.
16.1721 €
200 pcs.
15.2677 €
500 pcs.
14.6965 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 100 W, type MP 9100.

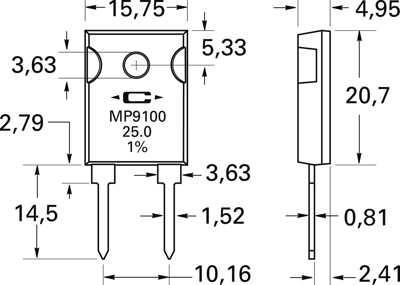

Technical specifications
ohmic resistance 10 Ω
Version power metal film resistor
Design radial
Width 4.95 mm
Height 20.7 mm
Length 15.75 mm
Power 100 W
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
Tolerance ±1 %
Temperature coefficient -20/80 ppm/K
Logistics
Country of origin US
Customs tariff number 85332900
Original Packaging Bar with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
