MP9100-20.0-1% | Caddock

Power metal film resistor, 20 Ω, 100 W, ±1 %, MP9100-20.0-1%

Order No.: 60E764
EAN: 4099879697257
MPN:
MP9100-20.0-1%
Series: MP9100
MP9100-20.0-1% Caddock Wirewound Resistors Image 1
MP9100-20.0-1% Caddock Wirewound Resistors Image 2
MP9100-20.0-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
11.7572 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
293.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
11.7572 €

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 100 W, type MP 9100.

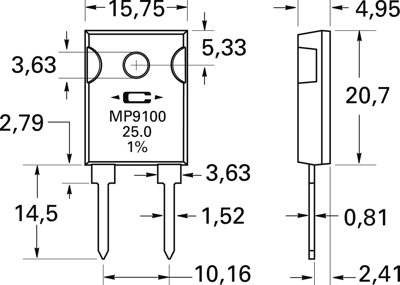

Technical specifications
Design radial
Length 15.75 mm
min. operating temperature -55 °C
ohmic resistance 20 Ω
Height 20.7 mm
Assembly THT
Version power metal film resistor
Temperature coefficient -20/80 ppm/K
max. operating temperature 175 °C
Tolerance ±1 %
Width 4.95 mm
Power 100 W
Logistics
Country of origin US
Original Packaging Bar with 25 pieces
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
