MP9100-2.00-1% | Caddock

Power metal film resistor, 2 Ω, 100 W, ±1 %, MP9100-2.00-1%

Order No.: 60E758
EAN: 4099879697226
MPN:
MP9100-2.00-1%
Series: MP9100
MP9100-2.00-1% Caddock Wirewound Resistors Image 1
MP9100-2.00-1% Caddock Wirewound Resistors Image 2
MP9100-2.00-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
12.6616 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
316.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
12.6616 €

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 100 W, type MP 9100.

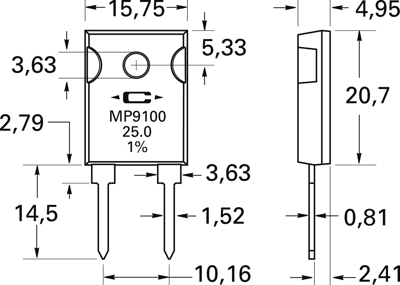

Technical specifications
Version power metal film resistor
Design radial
max. operating temperature 175 °C
ohmic resistance 2 Ω
min. operating temperature -55 °C
Width 4.95 mm
Tolerance ±1 %
Assembly THT
Length 15.75 mm
Power 100 W
Height 20.7 mm
Temperature coefficient -20/80 ppm/K
Logistics
Country of origin US
Original Packaging Bar with 25 pieces
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
