MP9100-100-1% | Caddock

Power metal film resistor, 100 Ω, 100 W, ±1 %, MP9100-100-1%

Order No.: 60E772
EAN: 4099879697295
MPN:
MP9100-100-1%
Series: MP9100

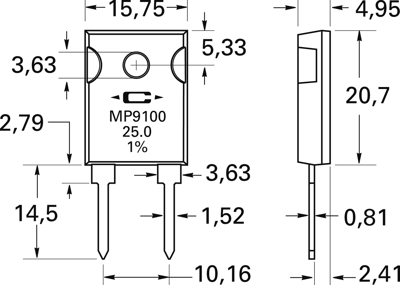

MP9100-100-1% Caddock Wirewound Resistors Image 1
MP9100-100-1% Caddock Wirewound Resistors Image 2
MP9100-100-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
17.2907 € *
Available: 132 pcs.
Total Price:
17.29 € *
Price list
Quantity
Price per unit*
1 pcs.
17.2907 €
25 pcs.
15.2201 €
50 pcs.
14.6965 €
200 pcs.
13.8754 €
500 pcs.
13.3518 €
*incl. VAT plus shipping costs
Subject to prior sale

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 100 W, type MP 9100.

Technical specifications
Filter Property Value
Design radial
Length 15.75 mm
min. operating temperature -55 °C
ohmic resistance 100 Ω
Height 20.7 mm
Assembly THT
Version power metal film resistor
Temperature coefficient -20/80 ppm/K
max. operating temperature 175 °C
Tolerance ±1 %
Width 4.95 mm
Power 100 W
Logistics
Property Value
Country of origin US
Original Packaging Bar with 25 pieces
Customs tariff number 85332900
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
