MP9100-0.10-1% | Caddock

Power metal film resistor, 100 mΩ, 100 W, ±1 %, MP9100-0.10-1%

Order No.: 60E752
EAN: 4099879697189
MPN:
MP9100-0.10-1%
Series: MP9100
MP9100-0.10-1% Caddock Wirewound Resistors Image 1
MP9100-0.10-1% Caddock Wirewound Resistors Image 2
MP9100-0.10-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
22.9313 € *
Available: 32 pcs.
Total Price:
22.93 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9313 €
25 pcs.
20.1824 €
50 pcs.
19.4922 €
200 pcs.
18.3855 €
500 pcs.
17.7072 €
*incl. VAT plus shipping costs
Subject to prior sale

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 100 W, type MP 9100.

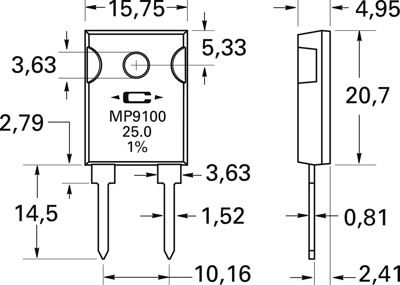

Technical specifications
Design radial
Length 15.75 mm
min. operating temperature -55 °C
ohmic resistance 100 mΩ
Height 20.7 mm
Assembly THT
Version power metal film resistor
Temperature coefficient 0/+200 ppm/K
max. operating temperature 175 °C
Tolerance ±1 %
Width 4.95 mm
Power 100 W
Logistics
Country of origin US
Original Packaging Bar with 25 pieces
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
