MP9100-0.050-1% | Caddock

Power metal film resistor, 50 mΩ, 100 W, ±1 %, MP9100-0.050-1%

Order No.: 60E750
EAN: 4099879697172
MPN:
MP9100-0.050-1%
Series: MP9100

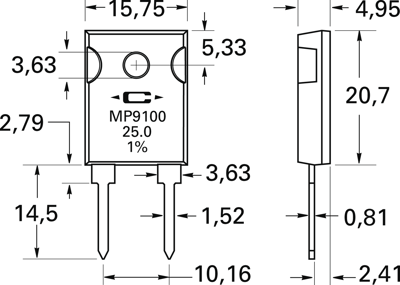

MP9100-0.050-1% Caddock Wirewound Resistors Image 1
MP9100-0.050-1% Caddock Wirewound Resistors Image 2
MP9100-0.050-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
17.7548 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
443.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
17.7548 €

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 100 W, type MP 9100.

Technical specifications
Filter Property Value
Design radial
Length 15.75 mm
min. operating temperature -55 °C
ohmic resistance 50 mΩ
Height 20.7 mm
Assembly THT
Version power metal film resistor
Temperature coefficient 0/+200 ppm/K
max. operating temperature 175 °C
Tolerance ±1 %
Width 4.95 mm
Power 100 W
Logistics
Property Value
Country of origin US
Original Packaging Bar with 25 pieces
Customs tariff number 85332900
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
