MP820-75.0-1% | Caddock
Power metal film resistor, 75 Ω, 20 W, ±1 %
Active
Total price
(
8.7465 €
* / pcs.)
8.75 €
Next delivery: 50 pcs. on 2023-07-27
Quantity
Price per unit*
1 pcs.
8.7465 €
5 pcs.
7.9492 €
25 pcs.
7.5327 €
75 pcs.
7.1638 €
150 pcs.
6.9377 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Caddock at Bürklin Elektronik
Power metal film resistors, 20 W, tolerance 1.0 %, TO220 package, type Caddock MP820/MP821.
With metallic cooling and mounting tab
With max. voltage 300 V, type MP820.

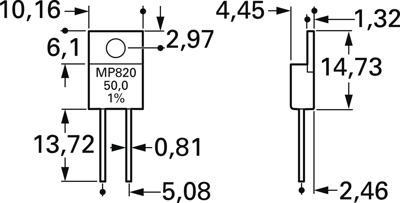

Technical specifications
| ohmic resistance | 75 Ω | |
| Version | power metal film resistor | |
| Design | radial | |
| Width | 4.45 mm | |
| Height | 14.73 mm | |
| Length | 10.16 mm | |
| Power | 20 W | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Temperature coefficient | -20/+50 ppm/K | |
| Tolerance | ±1 % |
Logistics
| Country of origin | US |
| Customs tariff number | 85332900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
60E828
Manufacturer:
Caddock
Manufacturer SKU
MP820-75.0-1%
1 pcs.
8.7465 €
5 pcs.
7.9492 €
25 pcs.
7.5327 €
75 pcs.
7.1638 €
150 pcs.
6.9377 €
radial
75 Ω
power metal film resistor
4.45 mm
10.16 mm
±1 %
14.73 mm
THT
-55 °C
175 °C
20 W
Order No.:
60E820
Manufacturer:
Caddock
Manufacturer SKU
MP820-10.0-1%
1 pcs.
8.2110 €
10 pcs.
7.5089 €
25 pcs.
6.9377 €
50 pcs.
6.4498 €
250 pcs.
6.0095 €
8.21 € *
Available: 18 pcs.
radial
10 Ω
power metal film resistor
4.45 mm
10.16 mm
±1 %
14.73 mm
THT
-55 °C
175 °C
20 W
Order No.:
60E834
Manufacturer:
Caddock
Manufacturer SKU
MP820-500-1%
50 pcs.
8.211 €
radial
500 Ω
power metal film resistor
4.45 mm
10.16 mm
±1 %
14.73 mm
THT
-55 °C
175 °C
20 W
Order No.:
60E826
Manufacturer:
Caddock
Manufacturer SKU
MP820-50.0-1%
1 pcs.
8.4609 €
10 pcs.
7.7469 €
25 pcs.
7.1519 €
50 pcs.
6.6521 €
250 pcs.
6.1999 €
8.46 € *
Available: 48 pcs.
radial
50 Ω
power metal film resistor
4.45 mm
10.16 mm
±1 %
14.73 mm
THT
-55 °C
175 °C
20 W
Order No.:
60E804
Manufacturer:
Caddock
Manufacturer SKU
MP821-0.10-1%
1 pcs.
12.5783 €
10 pcs.
11.5192 €
25 pcs.
10.6386 €
50 pcs.
9.8889 €
250 pcs.
9.2344 €
12.58 € *
Available: 50 pcs.
radial
0.1 Ω
power metal film resistor
4.45 mm
10.16 mm
±1 %
14.73 mm
THT
-55 °C
175 °C
20 W
Order No.:
60E806
Manufacturer:
Caddock
Manufacturer SKU
MP821-0.20-1%
1 pcs.
9.7937 €
5 pcs.
8.9131 €
25 pcs.
8.4490 €
75 pcs.
8.0325 €
150 pcs.
7.7826 €
9.79 € *
Available: 176 pcs.
radial
0.2 Ω
power metal film resistor
4.45 mm
10.16 mm
±1 %
14.73 mm
THT
-55 °C
175 °C
20 W
