MP820-50.0-1% | Caddock

Power metal film resistor, 50 Ω, 20 W, ±1 %, MP820-50.0-1%

Order No.: 60E826
EAN: 4099879697592
MPN:
MP820-50.0-1%
Series: MP8
Caddock
MP820-50.0-1% Caddock Wirewound Resistors Image 1
MP820-50.0-1% Caddock Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
6.6283 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
6.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
6.6283 €

Power metal film resistors, 20 W, tolerance 1.0 %, TO220 package, type Caddock MP820/MP821.

With metallic cooling and mounting tab

With max. voltage 300 V, type MP820.

Technical specifications
ohmic resistance 50 Ω
Version power metal film resistor

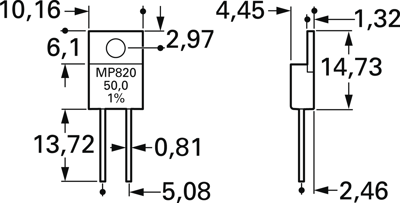

Design radial
Width 4.45 mm
Height 14.73 mm
Length 10.16 mm
Power 20 W
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
Tolerance ±1 %
Temperature coefficient -20/+50 ppm/K
Logistics
Country of origin US
Customs tariff number 85332900
Original Packaging Bar with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
