MP820-500-1% | Caddock
Power metal film resistor, 500 Ω, 20 W, ±1 %, MP820-500-1%
Unit Price (€ / pc.)
8.4609 € *
Standard delivery time from the manufacturer is: 12 Weeks

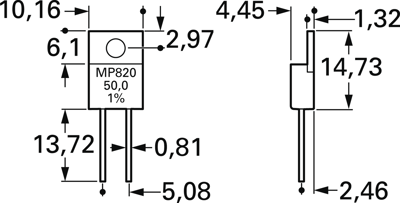

Power metal film resistors, 20 W, tolerance 1.0 %, TO220 package, type Caddock MP820/MP821.
With metallic cooling and mounting tab
With max. voltage 300 V, type MP820.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 500 Ω | |
| Width | 4.45 mm | |
| Tolerance | ±1 % | |
| Temperature coefficient | -20/+50 ppm/K | |
| max. operating temperature | 175 °C | |
| Power | 20 W | |
| min. operating temperature | -55 °C | |
| Version | power metal film resistor | |
| Assembly | THT | |
| Design | radial | |
| Height | 14.73 mm | |
| Length | 10.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Country of origin | US |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
