MP820-10.0-1% | Caddock

Power metal film resistor, 10 Ω, 20 W, ±1 %, MP820-10.0-1%

Order No.: 60E820
EAN: 4099879697561
MPN:
MP820-10.0-1%
Series: MP8
MP820-10.0-1% Caddock Wirewound Resistors Image 1
MP820-10.0-1% Caddock Wirewound Resistors Image 2
MP820-10.0-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
6.7354 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
336.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
6.7354 €

Power metal film resistors, 20 W, tolerance 1.0 %, TO220 package, type Caddock MP820/MP821.

With metallic cooling and mounting tab

With max. voltage 300 V, type MP820.

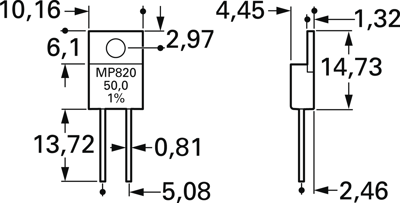

Technical specifications
Design radial
Length 10.16 mm
min. operating temperature -55 °C
ohmic resistance 10 Ω
Height 14.73 mm
Assembly THT
Version power metal film resistor
Temperature coefficient -20/+50 ppm/K
max. operating temperature 175 °C
Tolerance ±1 %
Width 4.45 mm
Power 20 W
Logistics
Country of origin US
Original Packaging Bar with 50 pieces
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
