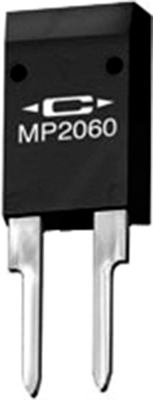

MP2060-500-1% | Caddock
Power metal film resistor, 500 Ω, 60 W, ±1 %
Active
Total price
(
8.3062 €
* / pcs.)
8.31 €
Available: 38 pcs.
Quantity
Price per unit*
1 pcs.
8.3062 €
10 pcs.
7.6041 €
25 pcs.
7.0329 €
50 pcs.
6.5331 €
250 pcs.
6.0928 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Caddock at Bürklin Elektronik
Power metal film resistors, 60 W, type Caddock MP2060 Kool-Pak.
For clip mounting, low inductance, for high-speed circuits and RF applications, insulated package
Technical specifications
| ohmic resistance | 500 Ω | |
| Version | power metal film resistor | |
| Design | radial | |

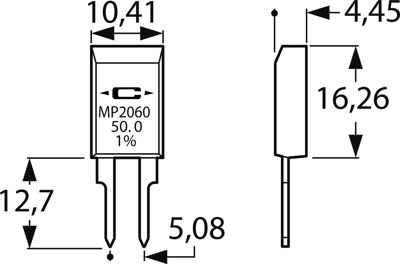

| Width | 4.45 mm | |
| Height | 16.26 mm | |
| Length | 10.41 mm | |
| Power | 60 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Temperature coefficient | -20/80 ppm/K | |
| Tolerance | ±1 % |
Logistics
| Country of origin | US |
| Customs tariff number | 85332900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
60E789
Manufacturer:
Caddock
Manufacturer SKU
MP2060-5.00-1%
50 pcs.
7.9016 €
radial
5 Ω
power metal film resistor
4.45 mm
10.41 mm
±1 %
16.26 mm
THT
-55 °C
150 °C
60 W
Order No.:
60E790
Manufacturer:
Caddock
Manufacturer SKU
MP2060-10.0-1%
1 pcs.
8.3062 €
10 pcs.
7.6041 €
25 pcs.
7.0329 €
50 pcs.
6.5331 €
250 pcs.
6.0928 €
8.31 € *
Available: 44 pcs.
radial
10 Ω
power metal film resistor
4.45 mm
10.41 mm
±1 %
16.26 mm
THT
-55 °C
150 °C
60 W
Order No.:
60E797
Manufacturer:
Caddock
Manufacturer SKU
MP2060-500-1%
1 pcs.
8.3062 €
10 pcs.
7.6041 €
25 pcs.
7.0329 €
50 pcs.
6.5331 €
250 pcs.
6.0928 €
8.31 € *
Available: 38 pcs.
radial
500 Ω
power metal film resistor
4.45 mm
10.41 mm
±1 %
16.26 mm
THT
-55 °C
150 °C
60 W
Order No.:
60E782
Manufacturer:
Caddock
Manufacturer SKU
MP2060-0.020-1%
1 pcs.
13.2804 €
10 pcs.
12.1856 €
25 pcs.
11.2455 €
50 pcs.
10.4363 €
250 pcs.
9.7461 €
13.28 € *
Available: 50 pcs.
radial
0.02 Ω
power metal film resistor
4.45 mm
10.41 mm
±1 %
16.26 mm
THT
-55 °C
150 °C
60 W
Order No.:
60E793
Manufacturer:
Caddock
Manufacturer SKU
MP2060-50.0-1%
1 pcs.
8.9250 €
5 pcs.
8.1158 €
25 pcs.
7.6874 €
75 pcs.
7.3185 €
150 pcs.
7.0805 €
8.93 € *
Available: 43 pcs.
radial
50 Ω
power metal film resistor
4.45 mm
10.41 mm
±1 %
16.26 mm
THT
-55 °C
150 °C
60 W
