MP2060-10.0-1% | Caddock

Power metal film resistor, 10 Ω, 60 W, ±1 %, MP2060-10.0-1%

Order No.: 60E790
EAN: 4099879697400
MPN:
MP2060-10.0-1%
Series: MP2060
Caddock

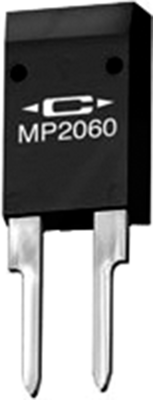

MP2060-10.0-1% Caddock Wirewound Resistors Image 1
MP2060-10.0-1% Caddock Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
6.7235 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
6.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
6.7235 €

Power metal film resistors, 60 W, type Caddock MP2060 Kool-Pak.

For clip mounting, low inductance, for high-speed circuits and RF applications, insulated package

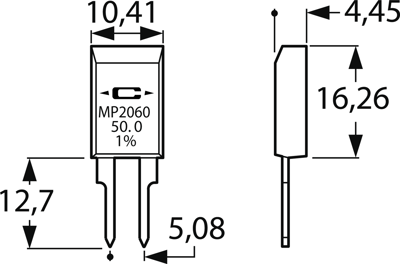

Technical specifications
ohmic resistance 10 Ω
Version power metal film resistor
Design radial
Width 4.45 mm
Height 16.26 mm
Length 10.41 mm
Power 60 W
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Tolerance ±1 %
Temperature coefficient -20/80 ppm/K
Logistics
Country of origin US
Customs tariff number 85332900
Original Packaging Bar with 50 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
