MP2060-50.0-1% | Caddock

Power metal film resistor, 50 Ω, 60 W, ±1 %, MP2060-50.0-1%

Order No.: 60E793
EAN: 4099879697431
MPN:
MP2060-50.0-1%
Series: MP2060

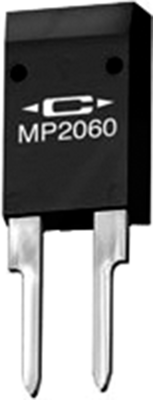

MP2060-50.0-1% Caddock Wirewound Resistors Image 1
MP2060-50.0-1% Caddock Wirewound Resistors Image 2
Image may differ
Unit Price (€ / pc.)
9.1987 € *
Available: 33 pcs.
Total Price:
9.20 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1987 €
10 pcs.
8.0920 €
50 pcs.
7.5327 €
200 pcs.
7.1043 €
400 pcs.
6.8306 €
*incl. VAT plus shipping costs
Subject to prior sale

Power metal film resistors, 60 W, type Caddock MP2060 Kool-Pak.

For clip mounting, low inductance, for high-speed circuits and RF applications, insulated package

Technical specifications

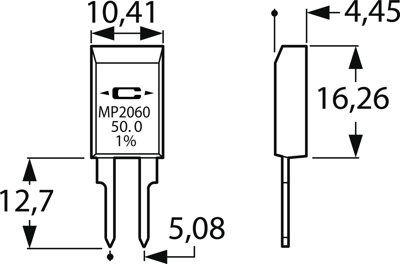

Design radial
Length 10.41 mm
min. operating temperature -55 °C
ohmic resistance 50 Ω
Height 16.26 mm
Assembly THT
Version power metal film resistor
Temperature coefficient -20/80 ppm/K
max. operating temperature 150 °C
Tolerance ±1 %
Width 4.45 mm
Power 60 W
Logistics
Country of origin US
Original Packaging Bar with 50 pieces
Customs tariff number 85332900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
