BYB-3-90H0132 | by.B
ABS enclosure, (L x W x H) 160 x 80 x 60 mm, light gray (RAL 7035), IP66, BYB-3-90H0132
Order No.: 90H0132
EAN: 4099891989613
MPN:
BYB-3-90H0132
Unit Price (€ / pc.)
9.1273 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
9.13 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1273 €
10 pcs.
8.7584 €
50 pcs.
8.4133 €
100 pcs.
8.0801 €
500 pcs.
7.7588 €
*incl. VAT plus shipping costs
Subject to prior sale
ABS housing, BYB-3-90H0132, by.B

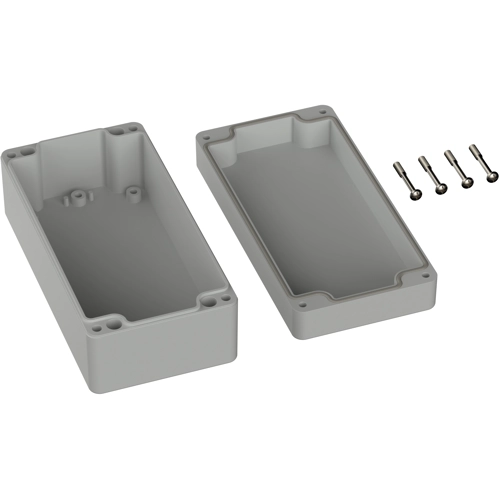

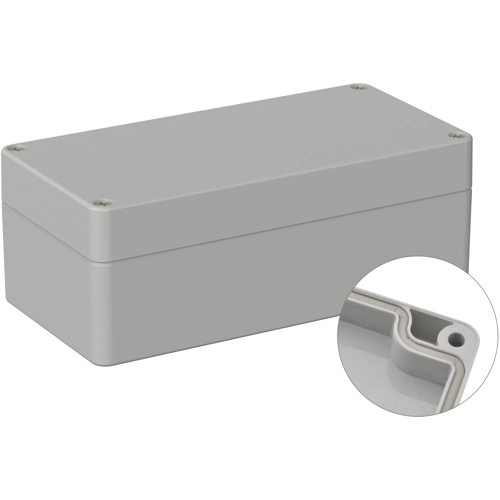

High-quality industrial housing made of ABS, factory-fitted round cord seal. Cover screws screwed into high-quality threaded bushings, no thread wear even after repeated opening. Circuit boards and mounting plates can be securely fastened in the lower section using screw domes. The cover screws, which are secured against falling out, are screwed into high-quality threaded bushings. The enclosure can be mounted on the wall using the screw channels in the lower section. Large machining surfaces and versatile mounting options for connectors, switches, and buttons.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | ABS | |
| Length | 160 mm | |
| Width | 80 mm | |
| Height | 60 mm | |
| Colour | light gray | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
