DX0505/GN/24 | BULGIN
Signal light, vandal-proof, 24 V (AC), 24 V (DC), 2.2 V, green, 100 mcd, Mounting Ø 12.1 mm, LED number: 1, DX0505/GN/24
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
38.7702 € *
Available in 12 Days: 50 pcs. - if ordered today
Total Price:
38.77 € *
Price list
Quantity
Price per unit*
1 pcs.
38.7702 €
10 pcs.
35.9975 €
25 pcs.
33.5937 €
50 pcs.
30.5473 €
*incl. VAT plus shipping costs
Subject to prior sale

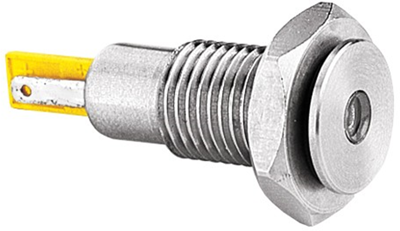

Vandal resistant LED signal lamps, type Bulgin DX0505.
Flat LED signal lamp, not flush with the panel, with high-quality stainless steel housing; Mounting diameter: 12 mm. Degree of protection: IP 67. Operating temperatures: –40 to +80 °C.
Technical attributes (type, rated voltage, light color, luminous intensity, rated current): DX0505/GN/24, 24 V AC/DC, green, 100 mcd, 25 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | vandal-proof | |
| Connection | solder connection/2.8 mm | |
| Diode Diameter | 15 mm | |
| Installation diameter | 12.1 mm | |
| Farbe der Beleuchtung | green | |
| Luminous intensity | 0.1 cd | |
| Assembly | screw mounting | |
| Rated voltage (AC) | 24 V | |
| Rated voltage (DC) | 24 V | |
| Rated voltage | 2.2 V | |
| Rated current | 25 mA | |
| Number of LEDs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
