MPI002/TERM/GN | BULGIN

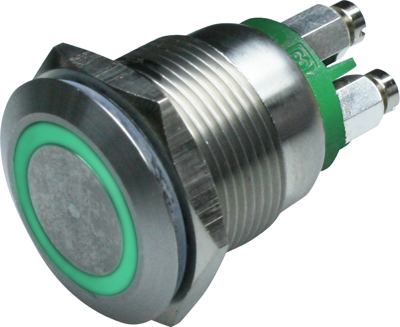

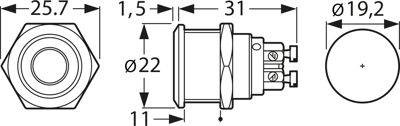

Vandal-proof pushbutton, 1 pole, silver, illuminated (green), 0.05 A/24 V, mounting Ø 19.2 mm, IP66, MPI002/TERM/GN
Unit Price (€ / pc.)
38.5441 € *
Available: 44 pcs.
Available in 5 Days: 520 pcs. - if ordered today
Total Price:
38.54 € *
Price list
Quantity
Price per unit*
1 pcs.
38.5441 €
5 pcs.
36.2474 €
15 pcs.
34.8551 €
50 pcs.
33.3081 €
150 pcs.
31.9158 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal resistant pushbutton, degree of protection IP 66, illuminated, type Bulgin MPI00.
Single-pole NO, screw terminals, made of stainless steel; Panel mount diameter: 19 mm. Switching power: 24 VDC/50 mA. Contact resistance: max. 100 mohm. Actuating force: 12 N. Degree of protection: IP 66. Operating temperatures: –30 to +70 °C.
With ring illumination, screw terminals, type MPI002.
Type: MPI002/TERM/GN, momentary pushbutton, green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 19.2 mm | |
| illuminated | Yes | |
| contact surface | gold-plated | |
| Farbe der Beleuchtung | green | |
| Actuator colour | silver | |
| Printed | No | |
| Protection class | IP66 | |
| Pin number | 1 pole | |
| Breaking capacity | 0.05 A/24 V | |
| Latching switching function | groping | |
| Vandal-proof | Yes | |
| Connection | screw connection | |
| Design | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
