MPI002/28/RD | BULGIN
Vandal-proof pushbutton, 2 pole, silver, illuminated (red), 0.05 A/24 V, mounting Ø 19.2 mm, IP66, MPI002/28/RD
Unit Price (€ / pc.)
34.7361 € *
Available in 5 Days: 476 pcs. - if ordered today
Total Price:
34.74 € *
Price list
Quantity
Price per unit*
1 pcs.
34.7361 €
5 pcs.
32.6417 €
15 pcs.
31.4041 €
50 pcs.
30.0118 €
150 pcs.
28.7623 €
*incl. VAT plus shipping costs
Subject to prior sale

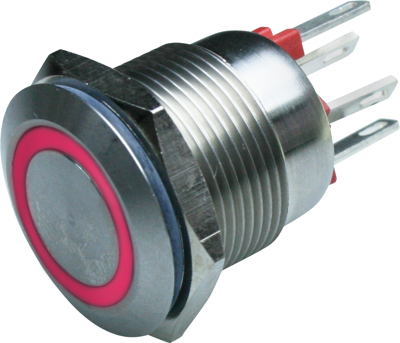

Vandal resistant pushbutton, degree of protection IP 66, illuminated, type Bulgin MPI00.
Single-pole NO, screw terminals, made of stainless steel; Panel mount diameter: 19 mm. Switching power: 24 VDC/50 mA. Contact resistance: max. 100 mohm. Actuating force: 12 N. Degree of protection: IP 66. Operating temperatures: –30 to +70 °C.
With ring illumination, 2.8 mm tab terminals, type MPI002.
Type: MPI002/28/RD, pushbutton, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| illuminated | Yes | |
| Protection class | IP66 | |
| Latching switching function | groping | |
| Farbe der Beleuchtung | red | |
| Breaking capacity | 0.05 A/24 V | |

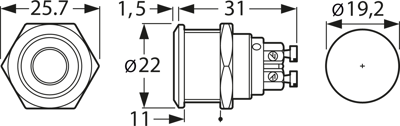

| Installation diameter | 19.2 mm | |
| Vandal-proof | Yes | |
| Design | round | |
| Actuator colour | silver | |
| Connection | quick connection | |
| Pin number | 2 pole | |
| Printed | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
