MPI002/28/D5 | BULGIN

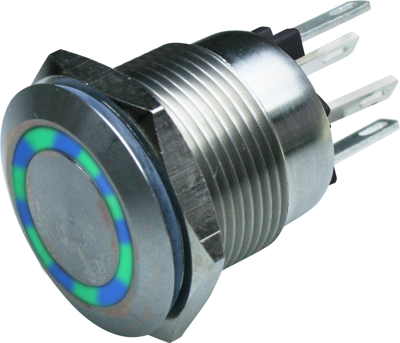

Vandal-proof pushbutton, 1 pole, silver, illuminated (green/blue), 0.05 A/24 V, mounting Ø 19.2 mm, IP66, MPI002/28/D5
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
43.4707 € *
Available: 48 pcs.
Total Price:
43.47 € *
Price list
Quantity
Price per unit*
1 pcs.
43.4707 €
2 pcs.
40.6742 €
5 pcs.
38.2109 €
10 pcs.
35.5215 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal resistant pushbutton, degree of protection IP 66, illuminated, type Bulgin with ring illumination, 2.8 mm tab terminals
Single-pole NO, bicolour, made of stainless steel
Switching capacity: 24 VDC/50 mA
Contact resistance: max. 100 mohm
Actuating force: 12 N
Degree of protection: IP 66
Operating temperatures: - 30 to +70 °C.
Type: MPI002/28/TERM/D5, pushbutton, green-blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | silver | |
| Breaking capacity | 0.05 A/24 V | |
| illuminated | Yes | |
| Farbe der Beleuchtung | green/blue | |
| Printed | No | |
| Vandal-proof | Yes | |
| Connection | quick connection | |
| Design | round | |
| contact surface | gold-plated | |

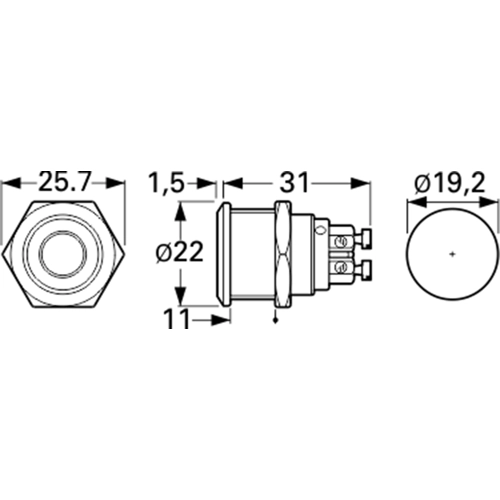

| Installation diameter | 19.2 mm | |
| Protection class | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
