MPI002/28/D4 | BULGIN

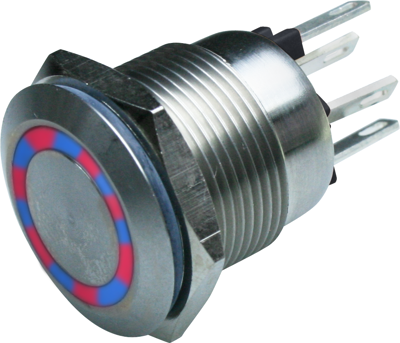

Vandal-proof pushbutton, 1 pole, red/blue, illuminated (red/blue), 0.5 A/24 V, mounting Ø 19 mm, IP66, MPI002/28/D4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
40.2696 € *
Available in 5 Days: 356 pcs. - if ordered today
Total Price:
40.27 € *
Price list
Quantity
Price per unit*
1 pcs.
40.2696 €
2 pcs.
37.6754 €
5 pcs.
35.3906 €
10 pcs.
32.9035 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal resistant pushbutton, degree of protection IP 66, illuminated, type Bulgin with ring illumination, 2.8 mm tab terminals
Single-pole NO, bicolour, made of stainless steel.
Switching capacity: 24 VDC/50 mA
Contact resistance: max. 100 mohm
Actuating force: 12 N
Degree of protection: IP 66
Operating temperatures: - 30 to +70 °C.
Type: MPI002/28/TERM/D4, pushbutton, red-blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | red/blue | |
| Breaking capacity | 0.5 A/24 V | |
| illuminated | Yes | |
| Farbe der Beleuchtung | red/blue | |
| Printed | No | |
| Vandal-proof | Yes | |
| Connection | screw connection | |
| Design | round | |
| contact surface | gold-plated | |
| Installation diameter | 19 mm | |
| Protection class | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
