MPI002/28/D1 | BULGIN

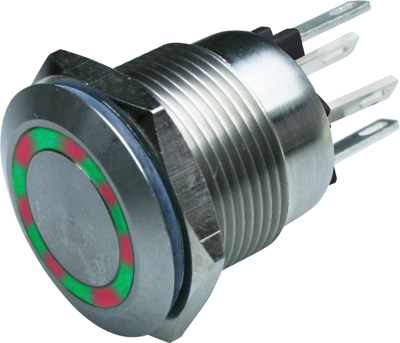

Vandal-proof pushbutton, 1 pole, silver, illuminated (red/green), 0.05 A/24 V, mounting Ø 19.2 mm, IP66, MPI002/28/D1
Unit Price (€ / pc.)
40.2696 € *
Available: 44 pcs.
Available in 5 Days: 531 pcs. - if ordered today
Total Price:
40.27 € *
Price list
Quantity
Price per unit*
1 pcs.
40.2696 €
2 pcs.
37.6754 €
5 pcs.
35.3906 €
10 pcs.
32.9035 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal resistant pushbutton, degree of protection IP 66, illuminated, type Bulgin with ring illumination, 2.8 mm tab terminals
single-pole NO, bicolour, made of stainless steel.
Switching capacity: 24 VDC/50 mA
Contact resistance: max. 100 mohm
Actuating force: 12 N
Degree of protection: IP 66
Operating temperatures: - 30 to +70 °C
Type: MPI002/28/TERM/D1, pushbutton, red-green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 0.05 A/24 V | |
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Installation diameter | 19.2 mm | |
| contact surface | gold-plated | |
| Printed | No | |
| Connection | quick connection | |
| Design | round | |
| Protection class | IP66 | |
| Farbe der Beleuchtung | red/green | |
| Vandal-proof | Yes | |
| Actuator colour | silver | |
| illuminated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
