3314J-1-202E | Bourns Electronics GmbH

Name: Cermet trimmer potentiometer, 2 kΩ, 0.25 W, SMD, on top, 3314J-1-202E
Brand: Bourns Electronics GmbH
SKU: 76E3814
Price: 2.05 EUR
Availability: InStock

Cermet trimmer potentiometer, 2 kΩ, 0.25 W, SMD, on top, 3314J-1-202E

Order No.: 76E3814

EAN: 4099879895158

MPN:

3314J-1-202E

Series: 3314J

Image may differ

Key Specification:

Version cermet trimmer potentiometer

ohmic resistance 2 kΩ

Tolerance ±20 %

Power 0.25 W

Assembly SMD

Show 17 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.0468 € *

Available: 1,625 pcs.

Leadtime: 8 Weeks **

Total Price:

2.05 € *

Price list

Quantity

Price per unit*

1 pcs.

2.0468 €

25 pcs.

1.7374 €

100 pcs.

1.6065 €

500 pcs.

1.4399 €

1000 pcs.

1.3804 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

SMD Cermet trimmer potentiometer, 3314J-1-202E, Bourns

SMD Cermet trimmer potentiometer, 2 kΩ, 0.25 W

Features

Surface Mount / Single Turn / Cermet Industrial / Sealed
Compatible with surface mount manufacturing processes
Compatible with popular vacuum pick-and-place equipmen
Side adjust available

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	TW
Customs tariff number	85334010
MSL	MSL 2
Original Packaging	Reel with 500 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Accessory

Adjusting screwdriver, L 127 mm, H-90

Order No.:

78E6351

Manufacturer SKU:

H-90

Available: 18 pcs. Leadtime: 6 Weeks **

3.82 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Variations

1 item in 17 variations

*incl. VAT plus shipping costs

Cermet trimmer potentiometer, 5 kΩ, 0.25 W, SMD, on top, 3314J-1-502E

Order No.:

76E3816

Manufacturer SKU:

3314J-1-502E

Available: 821 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 22 kΩ, 0.25 W, SMD, on top, 3314J-1-223E

Order No.:

76E3817

Manufacturer SKU:

3314J-1-223E

Available: 1,604 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 20 kΩ, 0.25 W, SMD, on top, 3314J-1-203E

Order No.:

76E3820

Manufacturer SKU:

3314J-1-203E

Available: 2,318 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 1 kΩ, 0.25 W, SMD, on top, 3314J-1-102E

Order No.:

76E3812

Manufacturer SKU:

3314J-1-102E

Available: 2,848 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 100 kΩ, 0.25 W, SMD, on top, 3314J-1-104E

Order No.:

76E3824

Manufacturer SKU:

3314J-1-104E

Available: 1,058 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 200 Ω, 0.25 W, SMD, on top, 3314J-1-201E

Order No.:

76E3808

Manufacturer SKU:

3314J-1-201E

Available: 899 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 10 Ω, 0.25 W, SMD, on top, 3314J-1-100E

Order No.:

76E3800

Manufacturer SKU:

3314J-1-100E

Available: 1,502 pcs. Leadtime: 8 Weeks **

1.75 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 2 kΩ, 0.25 W, SMD, on top, 3314J-1-202E

Order No.:

76E3814

Manufacturer SKU:

3314J-1-202E

Available: 1,625 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 50 kΩ, 0.25 W, SMD, on top, 3314J-1-503E

Order No.:

76E3822

Manufacturer SKU:

3314J-1-503E

Available: 5,007 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 500 Ω, 0.25 W, SMD, on top, 3314J-1-501E

Order No.:

76E3810

Manufacturer SKU:

3314J-1-501E

Available: 130 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 10 kΩ, 0.25 W, SMD, on top, 3314J-1-103E

Order No.:

76E3818

Manufacturer SKU:

3314J-1-103E

Available: 2,106 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 100 Ω, 0.25 W, SMD, on top, 3314J-1-101E

Order No.:

76E3806

Manufacturer SKU:

3314J-1-101E

Available: 4,681 pcs. Leadtime: 8 Weeks **

1.75 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 500 kΩ, 0.25 W, SMD, on top, 3314J-1-504E

Order No.:

76E3828

Manufacturer SKU:

3314J-1-504E

Available: 309 pcs. Leadtime: 8 Weeks **

2.05 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 200 kΩ, 0.25 W, SMD, on top, 3314J-1-204E

Order No.:

76E3826

Manufacturer SKU:

3314J-1-204E

Available: 0 pcs. Leadtime: 8 Weeks **

0.96 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 2 MΩ, 0.25 W, SMD, on top, 3314J-1-205E

Order No.:

76E3832

Manufacturer SKU:

3314J-1-205E

Available: 0 pcs. Leadtime: 8 Weeks **

1.23 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 500 kΩ, 0.25 W, SMD, on top, 3314J-2-504E

Order No.:

78E3716

Manufacturer SKU:

3314J-2-504E

Available: 0 pcs. Leadtime: 8 Weeks **

1.23 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Cermet trimmer potentiometer, 50 Ω, 0.25 W, SMD, on top, 3314J-1-500E

Order No.:

76E3804

Manufacturer SKU:

3314J-1-500E

Available: 0 pcs. Leadtime: 8 Weeks **

0.96 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

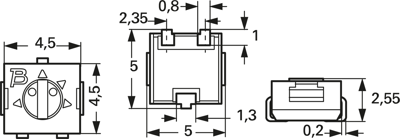

	ohmic resistance	2 kΩ
	Connection	J-hook
	Version	cermet trimmer potentiometer
	Width	4.5 mm
	Rotary range, electrical	210 °
	Mechanic rotary range	240 °
	Seeting	on top
	Height	2.55 mm
	Contact distance	RM 2.35
	Length	4.5 mm
	Power	0.25 W
	max. number of revolutions	1
	max. operating temperature	125 °C
	min. operating temperature	-55 °C
	Assembly	SMD
	Tolerance	±20 %
	Temperature coefficient	±100 ppm/K
