3314J-2-504E | Bourns Electronics GmbH

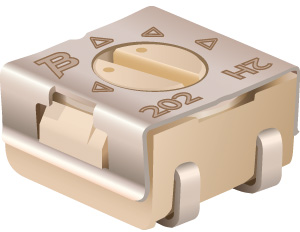

Cermet trimmer potentiometer, 500 kΩ, 0.25 W, SMD, on top, 3314J-2-504E

Order No.: 78E3716
EAN: 4099879920539
MPN:
3314J-2-504E
Series: 3314J
Bourns Electronics GmbH
default L
Image may differ
Print
Key Specification:
Version cermet trimmer potentiometer
ohmic resistance 500 kΩ
Tolerance ±20 %
Power 0.25 W
Assembly SMD
Show 17 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Add to Cart
Total Price:
1.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
1.2257 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

SMD Cermet trimmer potentiometer, 3314J-2-504E, Bourns

SMD Cermet trimmer potentiometer, 500 kΩ, 0.25 W

Features

  • Surface Mount / Single Turn / Cermet Industrial / Sealed
  • Compatible with surface mount manufacturing processes
  • Compatible with popular vacuum pick-and-place equipmen
  • Side adjust available
Technical specifications
ohmic resistance 500 kΩ
Connection J-hook
Version cermet trimmer potentiometer
Width 4.5 mm
Rotary range, electrical 210 °
Mechanic rotary range 240 °
Seeting on top
Height 2.55 mm
Contact distance RM 2.35
Length 4.5 mm
Power 0.25 W
max. number of revolutions 1
max. operating temperature 125 °C
min. operating temperature -55 °C
Assembly SMD
Tolerance ±20 %
Temperature coefficient ±100 ppm/K
Show similar products 0
Logistics
Country of origin TW
Customs tariff number 85334010
MSL MSL 2
Original Packaging Reel with 500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Accessory
Adjusting screwdriver, L 127 mm, H-90
Image may differ

Adjusting screwdriver, L 127 mm, H-90

Order No.:

 78E6351

Manufacturer SKU:

 H-90



Available: 18 pcs. Leadtime: 6 Weeks **
3.82 € per pc. *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8199 €
25 pcs.
3.3558 €
100 pcs.
3.1773 €
250 pcs.
3.0583 €
1000 pcs.
2.8798 €
Variations
ohmic resistance
Unit:
Version
Width
Unit:
Length
Unit:
Tolerance
Height
Unit:
Assembly
Connection
min. operating temperature
Contact distance
max. operating temperature
Power
Unit:
1 item in 17 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
ohmic resistance
Version
Width
Length
Tolerance
Height
Assembly
Connection
min. operating temperature
Contact distance
max. operating temperature
Power
Cermet trimmer potentiometer, 5 kΩ, 0.25 W, SMD, on top, 3314J-1-502E
Cermet trimmer potentiometer, 5 kΩ, 0.25 W, SMD, on top, 3314J-1-502E
Order No.:
 76E3816
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-502E
Available: 821 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
5 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 22 kΩ, 0.25 W, SMD, on top, 3314J-1-223E
Cermet trimmer potentiometer, 22 kΩ, 0.25 W, SMD, on top, 3314J-1-223E
Order No.:
 76E3817
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-223E
Available: 1,604 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
22 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 20 kΩ, 0.25 W, SMD, on top, 3314J-1-203E
Cermet trimmer potentiometer, 20 kΩ, 0.25 W, SMD, on top, 3314J-1-203E
Order No.:
 76E3820
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-203E
Available: 2,318 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
20 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 1 kΩ, 0.25 W, SMD, on top, 3314J-1-102E
Cermet trimmer potentiometer, 1 kΩ, 0.25 W, SMD, on top, 3314J-1-102E
Order No.:
 76E3812
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-102E
Available: 2,848 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
1 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 100 kΩ, 0.25 W, SMD, on top, 3314J-1-104E
Cermet trimmer potentiometer, 100 kΩ, 0.25 W, SMD, on top, 3314J-1-104E
Order No.:
 76E3824
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-104E
Available: 1,058 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
100 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 50 kΩ, 0.25 W, SMD, on top, 3314J-1-503E
Cermet trimmer potentiometer, 50 kΩ, 0.25 W, SMD, on top, 3314J-1-503E
Order No.:
 76E3822
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-503E
Available: 5,007 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
50 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 500 Ω, 0.25 W, SMD, on top, 3314J-1-501E
Cermet trimmer potentiometer, 500 Ω, 0.25 W, SMD, on top, 3314J-1-501E
Order No.:
 76E3810
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-501E
Available: 130 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
500 Ω
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 10 kΩ, 0.25 W, SMD, on top, 3314J-1-103E
Cermet trimmer potentiometer, 10 kΩ, 0.25 W, SMD, on top, 3314J-1-103E
Order No.:
 76E3818
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-103E
Available: 2,106 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
10 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 100 Ω, 0.25 W, SMD, on top, 3314J-1-101E
Cermet trimmer potentiometer, 100 Ω, 0.25 W, SMD, on top, 3314J-1-101E
Order No.:
 76E3806
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-101E
Available: 4,681 pcs. Leadtime: 8 Weeks **
Total Price: 5.25 € *
3 pcs.
1.7493 €
25 pcs.
1.5470 €
150 pcs.
1.3566 €
500 pcs.
1.2257 €
1000 pcs.
1.1186 €
100 Ω
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 200 Ω, 0.25 W, SMD, on top, 3314J-1-201E
Cermet trimmer potentiometer, 200 Ω, 0.25 W, SMD, on top, 3314J-1-201E
Order No.:
 76E3808
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-201E
Available: 899 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
200 Ω
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 10 Ω, 0.25 W, SMD, on top, 3314J-1-100E
Cermet trimmer potentiometer, 10 Ω, 0.25 W, SMD, on top, 3314J-1-100E
Order No.:
 76E3800
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-100E
Available: 1,502 pcs. Leadtime: 8 Weeks **
Total Price: 5.25 € *
3 pcs.
1.7493 €
25 pcs.
1.5470 €
150 pcs.
1.3566 €
500 pcs.
1.2257 €
1000 pcs.
1.1186 €
10 Ω
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 2 kΩ, 0.25 W, SMD, on top, 3314J-1-202E
Cermet trimmer potentiometer, 2 kΩ, 0.25 W, SMD, on top, 3314J-1-202E
Order No.:
 76E3814
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-202E
Available: 1,625 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
2 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
Cermet trimmer potentiometer, 500 kΩ, 0.25 W, SMD, on top, 3314J-1-504E
Cermet trimmer potentiometer, 500 kΩ, 0.25 W, SMD, on top, 3314J-1-504E
Order No.:
 76E3828
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU:
 3314J-1-504E
Available: 309 pcs. Leadtime: 8 Weeks **
Total Price: 2.05 € *
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
500 kΩ
cermet trimmer potentiometer
4.5 mm
4.5 mm
±20 %
2.55 mm
SMD
J-hook
-55 °C
RM 2.35
125 °C
0.25 W
