CR0402-J/-000GLF | Bourns Electronics GmbH
Resistor, thick film, SMD 0402 (1005), 0 Ω, 0.063 W, ±5 %, CR0402-J/-000GLF
Unit Price (€ / pc.)
0.0065 € *
Available: 4,125 pcs.
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0065 €
1000 pcs.
0.0039 €
3000 pcs.
0.0025 €
5000 pcs.
0.0023 €
15000 pcs.
0.0013 €
*incl. VAT plus shipping costs
Subject to prior sale

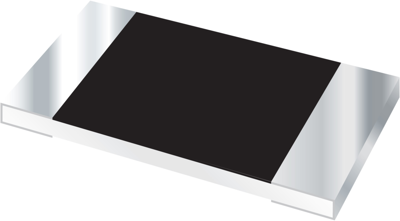

SMD Thick film resistor, CR0402-J/-000GLF, Bourns
Resistor, Thick film, SMD 0402, 0 Ω, 0.063 W, ±5 %
Features
- Small package dimensions
- RoHS compliant
- Power rating at 70 °C = 1/16 W
- Tight dimensional tolerances
- Suitable for most types of soldering processes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 0.063 W | |
| Temperature coefficient | ±100 ppm/K | |
| Technology | thick film | |
| max. operating temperature | 155 °C | |
| Tolerance | ±5 % | |
| Length | 1 mm | |
| Height | 0.32 mm | |
| Width | 0.5 mm | |
| min. operating temperature | -55 °C | |
| Design | SMD 0402 (1005) | |
| ohmic resistance | 0 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 10,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
