Bourns Electronics GmbH

4610X-102-103LF | Bourns Electronics GmbH

Resistor network, SIP-10, 10 kΩ, 0.3 W, ±2 %, 5 resistors, 4610X-102-103LF

default S
default L

Active

Total price
( 0.4403 € * / pcs.)
4.40 €
Available: 1,825 pcs.
Quantity
Price per unit*
10 pcs.
0.4403 €
50 pcs.
0.3689 €
250 pcs.
0.3332 €
1000 pcs.
0.2904 €
2000 pcs.
0.2618 €
*incl. VAT plus shipping costs
Show 71 variants
Description

Product by Bourns Electronics GmbH at Bürklin Elektronik

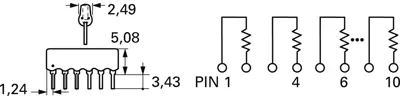

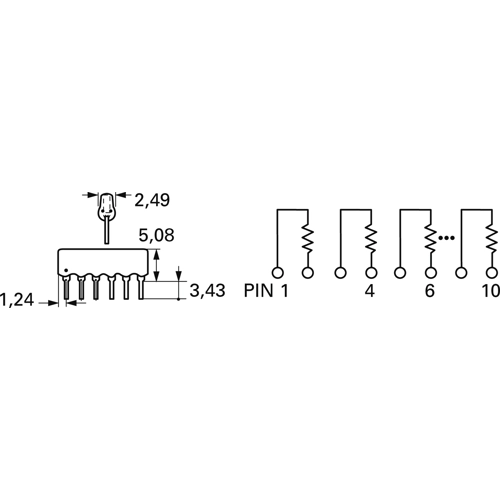

Resistance networks, type Bourns 4600X.

Thickfilm, SiL (Single-in-Line) resistors, not interconnected, separately insulated, all resistors of the same value and with separate connection (isolated resistors)

With 5 resistors, 10-pole, type 4610X-102-RC.

Technical specifications
ohmic resistance 10000 Ω
Number of resistors 5
Design SIP
Width 2.49 mm
Enclosure SIP-10
Height 5.08 mm
Length 25.35 mm
Power 0.3 W
max. operating temperature 125 °C
Assembly THT
Temperature coefficient ±100 ppm/°C
Tolerance ±2 %
Show similar products (0)
Logistics
Country of origin JP
Customs tariff number 85332100
MSL MSL 1
Original Packaging Bulk with 200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
1 item in 71 variations
Item description
Price list
Total
Design
ohmic resistance
Width
Length
Tolerance
Height
Assembly
max. operating temperature
Enclosure
Power
Resistor network, SIP-10, 4.7 kΩ, 0.3 W, ±2 %, 5 resistors, 4610X-102-472LF
Order No.:
 91E345
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-472LF
20 pcs.
0.3332 €
100 pcs.
0.2570 €
500 pcs.
0.2106 €
2000 pcs.
0.1868 €
4000 pcs.
0.1678 €
6.66 € *
Available: 1,891 pcs.
SIP
4700 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 680 Ω, 0.3 W, ±2 %, 5 resistors, 4610X-102-681LF
Order No.:
 91E320
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-681LF
10 pcs.
0.4403 €
50 pcs.
0.3689 €
250 pcs.
0.3332 €
1000 pcs.
0.2904 €
2000 pcs.
0.2618 €
4.40 € *
Available: 6,890 pcs.
SIP
680 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 10 kΩ, 0.3 W, ±2 %, 5 resistors, 4610X-102-103LF
Order No.:
 91E355
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-103LF
10 pcs.
0.4403 €
50 pcs.
0.3689 €
250 pcs.
0.3332 €
1000 pcs.
0.2904 €
2000 pcs.
0.2618 €
4.40 € *
Available: 1,825 pcs.
SIP
10000 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 560 Ω, 300 mW, ±2 %, 5 resistors, 4610X-102-561LF
Order No.:
 06E5417
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-561LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
560 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 22 Ω, 300 mW, ±1 %, 5 resistors, 4610X-102-220LF
Order No.:
 06E5392
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-220LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
22 Ω
2.49 mm
25.35 mm
±1 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 330 Ω, 0.3 W, ±2 %, 5 resistors, 4610X-102-331LF
Order No.:
 91E310
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-331LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
330 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 150 kΩ, 300 mW, ±2 %, 5 resistors, 4610X-102-154LF
Order No.:
 06E5384
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-154LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
150000 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 270 Ω, 300 mW, ±2 %, 5 resistors, 4610X-102-271LF
Order No.:
 06E5397
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-271LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
270 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 10 MΩ, 300 mW, ±5 %, 5 resistors, 4610X-102-106LF
Order No.:
 06E5375
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-106LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
10000000 Ω
2.49 mm
25.35 mm
±5 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 68 Ω, 300 mW, ±2 %, 5 resistors, 4610X-102-680LF
Order No.:
 06E5422
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-680LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
68 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 75 Ω, 300 mW, ±2 %, 5 resistors, 4610X-102-750LF
Order No.:
 06E5426
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-750LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
75 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 15 kΩ, 300 mW, ±2 %, 5 resistors, 4610X-102-153LF
Order No.:
 06E5383
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-153LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
15000 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 39 Ω, 300 mW, ±1 %, 5 resistors, 4610X-102-390LF
Order No.:
 06E5404
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-390LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
39 Ω
2.49 mm
25.35 mm
±1 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 1.2 kΩ, 300 mW, ±2 %, 5 resistors, 4610X-102-122LF
Order No.:
 06E5379
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-122LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
1200 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 82 kΩ, 300 mW, ±2 %, 5 resistors, 4610X-102-823LF
Order No.:
 06E5430
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-823LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
82000 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 180 kΩ, 300 mW, ±2 %, 5 resistors, 4610X-102-184LF
Order No.:
 06E5388
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-184LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
180000 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 27 Ω, 300 mW, ±1 %, 5 resistors, 4610X-102-270LF
Order No.:
 06E5396
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-270LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
27 Ω
2.49 mm
25.35 mm
±1 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 390 kΩ, 300 mW, ±2 %, 5 resistors, 4610X-102-394LF
Order No.:
 06E5408
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-394LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
390000 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 220 Ω, 300 mW, ±2 %, 5 resistors, 4610X-102-221LF
Order No.:
 06E5393
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-221LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
220 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
Resistor network, SIP-10, 47 kΩ, 300 mW, ±2 %, 5 resistors, 4610X-102-473LF
Order No.:
 06E5410
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 4610X-102-473LF
2000 pcs.
0.1868 €
0.19 € *
Currently not in stock, we will order for you
SIP
47000 Ω
2.49 mm
25.35 mm
±2 %
5.08 mm
THT
125 °C
SIP-10
0.3 W
