4610X-102-102LF | Bourns Electronics GmbH

Resistor network, SIP-10, 1 kΩ, 0.3 W, ±2 %, 5 resistors, 4610X-102-102LF

Order No.: 91E325
EAN: 4099879760456
MPN:
4610X-102-102LF
Series: 4600X
Bourns Electronics GmbH
default L
Image may differ
Unit Price (€ / pc.)
0.1440 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
0.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.1440 €

Resistance networks, type Bourns 4600X.

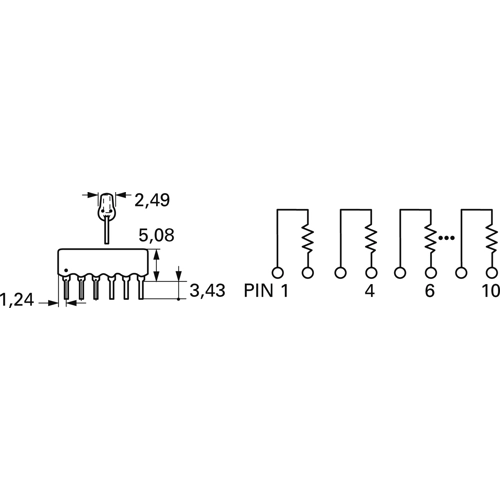

Thickfilm, SiL (Single-in-Line) resistors, not interconnected, separately insulated, all resistors of the same value and with separate connection (isolated resistors)

With 5 resistors, 10-pole, type 4610X-102-RC.

Technical specifications
ohmic resistance 1 kΩ
Number of resistors 5
Width 2.49 mm
Enclosure SIP-10
Height 5.08 mm
Length 25.35 mm
Power 0.3 W
max. operating temperature 125 °C
Assembly THT
Tolerance ±2 %
Temperature coefficient ±100 ppm/°C
Logistics
Country of origin JP
Customs tariff number 85340090
MSL MSL 1
Original Packaging Bulk with 200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
