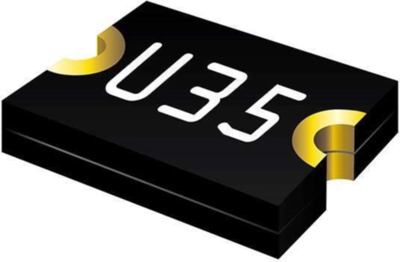

MF-USML450-2 | Bourns Electronics GmbH
PTC fuse, self-resetting, SMD 1210, 6 V (DC), 50 A, 9 A (trip), 4.5 A (hold), MF-USML450-2
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: On Request
SMD Fuse, MF-USML450-2, Bourns
SMD fuse, resettable, type: 1210, holding current: 4.5 A, tripping current: 9 A, rated voltage: 6 V, switching current: 50 A, approvals: UL, CSA
Features
- Surface mount packaging for automated assembly
- Small footprint (1210) and low profile for mobile applications with limited space
- RoHS compliant
- Halogen Free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 50 A | |
| Trigger current | 9 A | |
| max. holding current | 4.5 A | |
| Rated voltage (DC) | 6 V | |
| Design | SMD 1210 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
