ESG 3 | Block
Inrush current limiter, 16 A, 207-253 VAC, ESG 3
Unit Price (€ / pc.)
159.3648 € *
Available: 20 pcs.
Total Price:
159.36 € *
Price list
Quantity
Price per unit*
1 pcs.
159.3648 €
3 pcs.
154.5810 €
10 pcs.
149.2617 €
25 pcs.
145.2871 €
*incl. VAT plus shipping costs
Subject to prior sale

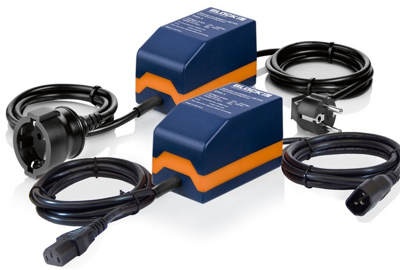

Inrush current limiters, type Block ESG.
With dynamic limiting times for optimum startup consumers with high inrush current. Integrated thermal fuse in the input circuit. Sealed in molded and insulating housing; Dimensions: 66 x 70 x 121 mm. Weight: 0.69 kg. Cable length: 2 x 1.4 m.
Technical attributes (type, rated voltage, rated current, internal resistance, degree of protection, connector and outlet standard): ESG 3, 230 V, 16 A, 7.8 ohm, IP 44, DIN 49440 (GER)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 207-253 VAC | |
| Connection | outlet | |
| Version | inrush current limiter | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
