ES 30 | Block
Inrush current limiter, 16 A, 220-400 VAC, ES 30
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
91.6062 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
91.61 € *
Price list
Quantity
Price per unit*
1 pcs.
91.6062 €
5 pcs.
86.1084 €
15 pcs.
82.8121 €
50 pcs.
79.1588 €
150 pcs.
75.8625 €
*incl. VAT plus shipping costs
Subject to prior sale

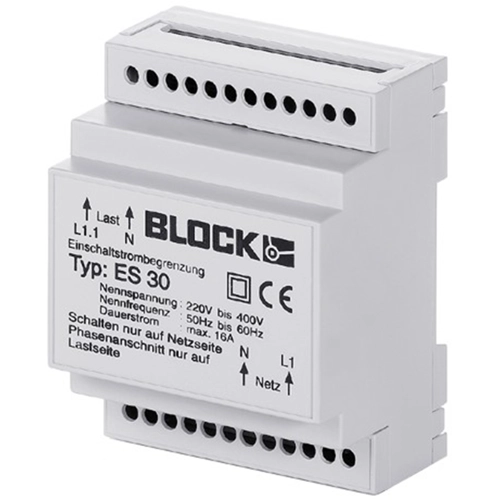

Inrush current limiters, type Block ES 30.
For loads with high inrush or startup currents. Rated voltage 220 to 400 V; Frequency range: 50 to 60 Hz. Rated current: max. 16 A. Integrated thermal fuse in the input circuit. Internal resistance: 3.75 ohm. Screw-on or snap-on housing for installation in cabinets. safety class: II. Ambient temperatures: max. +40 °C. Dimensions: W 82, L 88, H 73 mm. Note: The inrush current limiter is not suited for capacitive loads.
Type: ES 30, inrush current limiter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | inrush current limiter | |
| Rated current | 16 A | |
| Voltage | 220-400 VAC | |
| Connection | screw connection | |
| Assembly | DIN rail |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
