99 3400 100 03 | binder

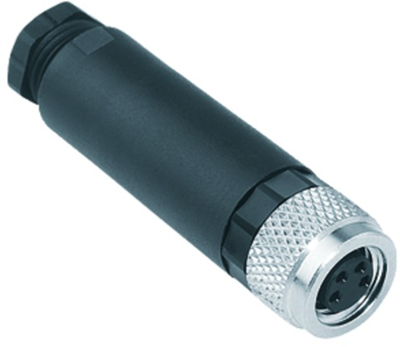

Jack, M8, 3 pole, screw connection, Screw locking, straight, 99 3400 100 03
Circular connector for sensor, M 8, type Binder 768.
With screw terminals; Conductor-cross-sections: 0.14 to 0.5 mm². Cable outlet: 3.5 to 5.0 mm. Rated voltage: 60 V. Rated current (+40 °C): 4.0 A. Test surge voltage: 910 V. Contact resistance: max. 3.0 mohm. Insulation resistance: 10 Gohm. Housing degree of protection: IP 67. Degree of soiling: 3. Overvoltage category: II. Contacts: copper tin. Finish: gold-plated. Non-shielded/shielded housing: PBT (UL 94 V-0). Operating temperatures: - 40 to +85 °C.
Female cable connectors with screw terminals.
Technical attributes (type, number of poles): 99-3400-100-03, 3-pole
| Version | jack | |
| Additional parts | equipped | |
| Thread size | M8 | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
Order No.:
67F5634
Manufacturer SKU:
99 3379 100 03

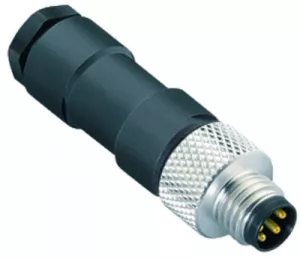

Order No.:
67F5630
Manufacturer SKU:
99 3379 00 03
Order No.:
67F5638

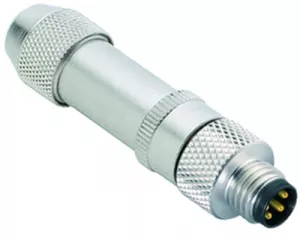

Manufacturer SKU:
99 3361 00 03
Order No.:
67F5642
Manufacturer SKU:
99 3385 00 03

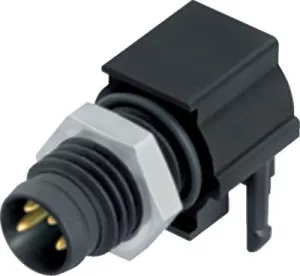

Order No.:
66P4066
Manufacturer SKU:
99 3403 282 03

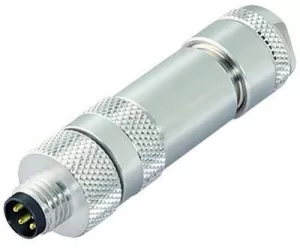

Order No.:
66P4030
Manufacturer SKU:
99 3361 100 03

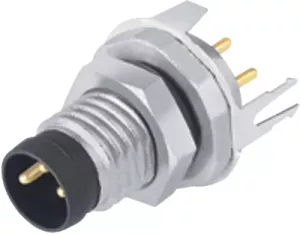

Order No.:
67F5788
Manufacturer SKU:
86 6319 1120 00003

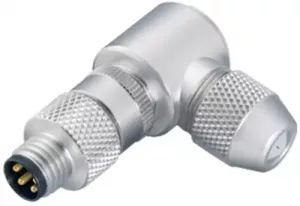

Order No.:
67F5887
Manufacturer SKU:
99 3367 00 04

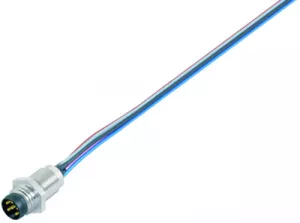

Order No.:
66P1110
Manufacturer SKU:
09 3403 00 03
Order No.:
66P1114

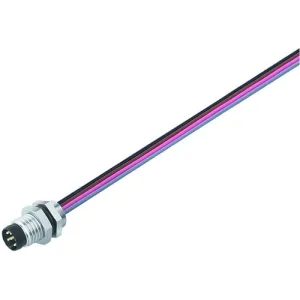

Manufacturer SKU:
09 3403 86 03
Order No.:
66P4032

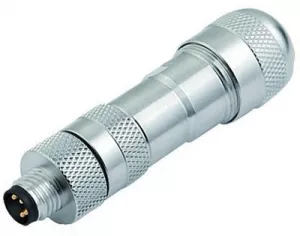

Manufacturer SKU:
99 3361 300 03
Order No.:
66P0066
Manufacturer SKU:
08 2441 000 000

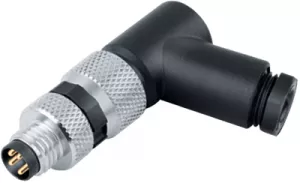

Order No.:
67F5886
Manufacturer SKU:
99 3379 110 03
Order No.:
67F5786

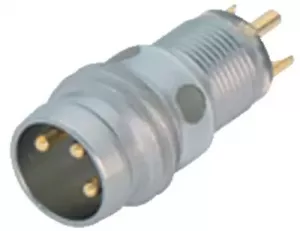

Manufacturer SKU:
