86 6919 0002 00703 | binder

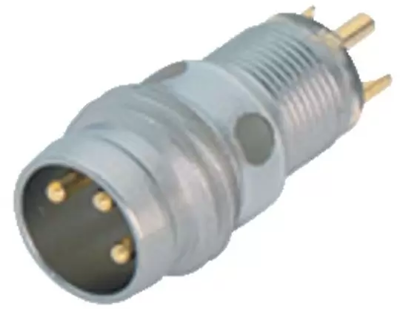

Name: Panel plug, M8, 3 pole, solder connection, Snap-in/Screw locking, straight, 86 6919 0002 00703
Brand: binder
SKU: 67F5786
Price: 4.02 EUR
Availability: OutOfStock

Panel plug, M8, 3 pole, solder connection, Snap-in/Screw locking, straight, 86 6919 0002 00703

Order No.: 67F5786

EAN: 4099891674120

MPN:

86 6919 0002 00703

Series: 718

Image may differ

Key Specification:

Version panel plug

Pin number 3 pole

Thread size M8

Type of locking Snap-in/Screw locking

Show 9 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.0222 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

4.02 € *

Price list

Quantity

Price per unit*

1 pcs.

4.0222 €

10 pcs.

3.6295 €

50 pcs.

3.2011 €

100 pcs.

2.7727 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Male connector, 86 6919 0002 00703, Franz Binder

M8 Male receptacle, Contacts: 3, unshielded, solder, IP65.

Technical specifications

	Version	panel plug
	Thread size	M8
	Contact connection	solder connection
	contact surface	gold-plated
	Assembly	panel mounting
	Orientation	straight
	Pin number	3 pole
	Degree of protection (IP)	IP65
	Type of locking	Snap-in/Screw locking

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85369010

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
