99 3376 100 04 | binder

Jack, M8, 4 pole, screw connection, screw locking, straight, 99 3376 100 04

Order No.: 67F5652
EAN: 4099889703092
MPN:
99 3376 100 04
Series: 768

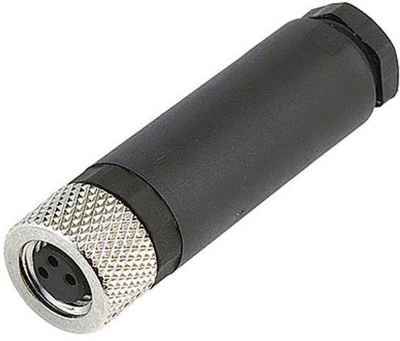

99 3376 100 04 binder Sensor-Actuator Connectors Image 1
99 3376 100 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.0305 € *
Available: 78 pcs.
Total Price:
13.03 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0305 €
10 pcs.
11.4716 €
50 pcs.
10.7100 €
150 pcs.
10.2221 €
500 pcs.
9.7104 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector for sensor, M 8, type Binder 768.

With screw terminals; Conductor-cross-sections: 0.14 to 0.5 mm².Cable outlet: 3.5 to 5.0 mm. Rated voltage: 60 V. Rated current (+40 °C): 4.0 A. Test surge voltage: 910 V.Contact resistance: max. 3.0 mohm. Insulation resistance: 10 Gohm. Housing degree of protection: IP 67. Degree of soiling: 3. Overvoltage category: II. Contacts: copper tin. Finish: gold-plated. Non-shielded/shielded housing: PBT (UL 94 V-0). Operating temperatures: - 40 to +85 °C.

Female cable connectors with screw terminals.

Technical attributes (type, number of poles): 99-3376-100-04, 4-pole

Technical specifications
Filter Property Value
Product type jack
Contact connection screw connection
Degree of protection (IP) IP67
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 4 pole
Type of locking screw locking
Thread size M8
Assembly cable assembly
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
