99 3391 282 04 | binder

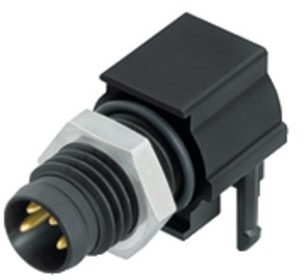

Panel plug, M8, 4 pole, THR, Snap-in/Screw locking, angled, 99 3391 282 04
Unit Price (€ / pc.)
6.6402 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.64 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6402 €
10 pcs.
5.9738 €
50 pcs.
5.2479 €
100 pcs.
4.5696 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 99-3391-282-04, BINDER
M8 Male angled panel mount connector, Contacts: 4, unshielded, THR, IP67, UL, front mounting.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Version | panel plug | |
| Thread size | M8 | |
| Contact connection | THR | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Snap-in/Screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
