77 6406 0000 50012-0200 | binder
Sensor actuator cable, cable socket, straight to open end, 12 pole, 2 m, PUR, black, 2 A, 77 6406 0000 50012-0200
Unit Price (€ / pc.)
29.4168 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
29.42 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4168 €
10 pcs.
27.6556 €
25 pcs.
25.7159 €
50 pcs.
23.9190 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 6406 0000 50012-0200, binder

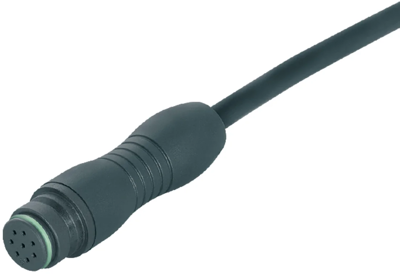

Snap-In IP67 Female cable connector, Contacts: 12, unshielded, moulded on the cable, IP67, PUR, black, 12 x 0.25 mm², 2 m.
Technical specifications
| Connection (1) | cable socket, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 2 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 60 V | |
| Rated current | 2 A | |
| Pin number | 12 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
