99 5695 00 24 | binder
Plug, 24 pole, solder connection, screw locking, straight, 99 5695 00 24
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
47.8737 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
47.87 € *
Price list
Quantity
Price per unit*
1 pcs.
47.8737 €
5 pcs.
45.0058 €
15 pcs.
43.2803 €
50 pcs.
41.3644 €
150 pcs.
39.6389 €
*incl. VAT plus shipping costs
Subject to prior sale

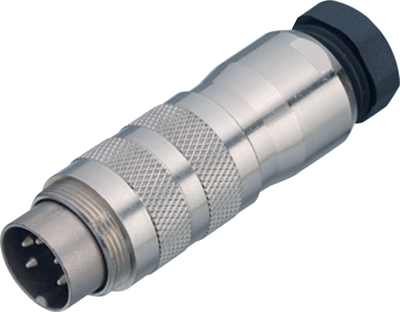

Male cable connector, 99-5695-00-24, Franz Binder
M16 IP67 Male connector, poles 24, 6.0-8.0 mm, shieldable, solder, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.14 mm² | |
| Pin number | 24 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| contact surface | gold-plated | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
