99 5671 00 08 | binder

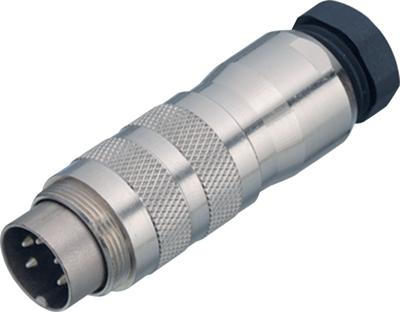

Name: Plug, 8 pole, solder connection, screw locking, straight, 99 5671 00 08
Brand: binder
SKU: 66P4587
Price: 25.25 EUR
Availability: InStock

Plug, 8 pole, solder connection, screw locking, straight, 99 5671 00 08

Order No.: 66P4587

EAN: 4099879132116

MPN:

99 5671 00 08

Series: 423

Image may differ

Key Specification:

Version plug

Cable cross-section 0.75 mm²

Pin number 8 pole

Orientation straight

Contact connection solder connection

Show 17 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

25.2518 € *

Available: 45 pcs.

Leadtime: 2 Weeks **

Total Price:

25.25 € *

Price list

Quantity

Price per unit*

1 pcs.

25.2518 €

10 pcs.

22.2054 €

50 pcs.

20.7060 €

150 pcs.

19.7897 €

500 pcs.

18.7901 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Male cable connector, 99-5671-00-08, Franz Binder

M16 IP67 Male connector, poles 8 DIN, 6.0-8.0 mm, shieldable, solder, IP68, UL, AISG compliant

Download

Technical Data Sheet - EN Technical Data Sheet

Manufacturer's catalogue - EN/DE Manufacturer's catalogue

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead

Accessory

Protective cap for Cable connector, 08 1077 000 000

Order No.:

66F780

Manufacturer SKU:

08 1077 000 000

Available: 45 pcs. Leadtime: 1 Week **

4.24 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

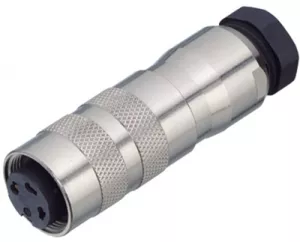

Jack, 8 pole, solder connection, screw locking, straight, 99 5672 00 08
