99 5609 09 04 | binder

Plug, 4 pole, solder connection, screw locking, straight, 99 5609 09 04

Order No.: 70P0197
EAN: 4099891694517
MPN:
99 5609 09 04
Series: 423

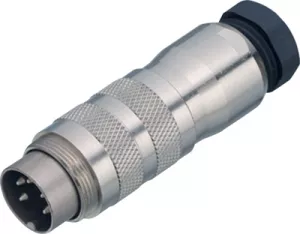

99 5609 09 04 binder Other Circular Connectors Image 1

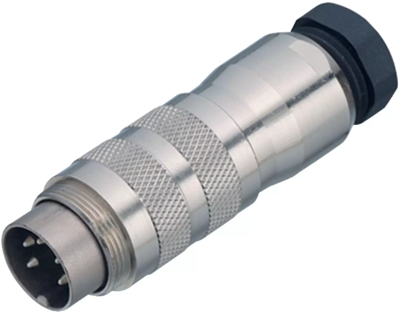

99 5609 09 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.8488 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.85 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8488 €
10 pcs.
19.5874 €
50 pcs.
18.4212 €
100 pcs.
17.3145 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 5609 09 04, binder

M16 IP67 Male cable connector, Contacts: 4, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version plug
Cable cross-section 0.75 mm²
Pin number 4 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
