99 0710 72 05 | binder
Angle coupling, 4 pole + PE, screw connection, screw locking, angled, 99 0710 72 05
Unit Price (€ / pc.)
38.1276 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
38.13 € *
Price list
Quantity
Price per unit*
1 pcs.
38.1276 €
10 pcs.
35.8428 €
25 pcs.
33.3438 €
50 pcs.
30.9995 €
*incl. VAT plus shipping costs
Subject to prior sale

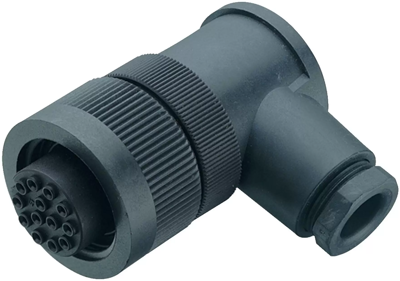

Socket connector, 99 0710 72 05, Franz Binder
RD30 Female angled connector, Contacts: 4+PE, 12.0-14.0 mm, unshielded, screw clamp, IP65, ESTI+, VDE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Shell Material | PA | |
| Contact connection | screw connection | |
| Pin number | 4 pole + PE | |
| Cable diameter | 12 to 14 mm | |
| contact surface | silver-plated | |
| Type of locking | screw locking | |
| Version | angle coupling | |
| Assembly | cable assembly | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
