99 0718 72 13 | binder
Angle coupling, 12 pole + PE, solder connection, screw locking, angled, 99 0718 72 13
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
36.8067 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
36.81 € *
Price list
Quantity
Price per unit*
1 pcs.
36.8067 €
10 pcs.
34.5933 €
25 pcs.
32.1776 €
50 pcs.
29.9166 €
*incl. VAT plus shipping costs
Subject to prior sale

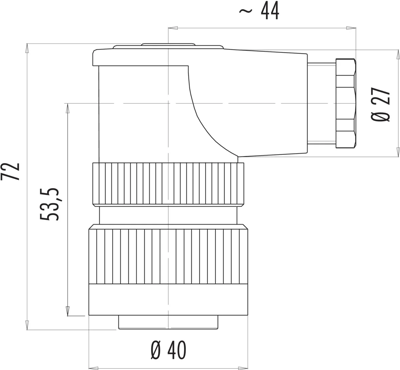

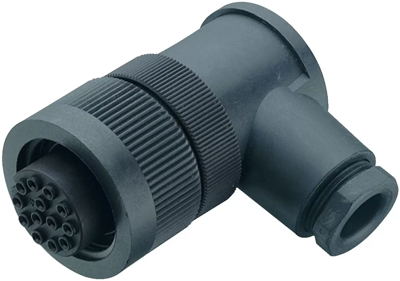

Female angled connector, 99 0718 72 13, binder
RD30 Female angled connector, Contacts: 12+PE, 12.0-14.0 mm, unshielded, solder, IP65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | angle coupling | |
| Cable cross-section | 1.0 mm² | |
| Pin number | 12 pole + PE | |
| Orientation | angled | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 12 to 14 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
