09 0505 25 16 | binder

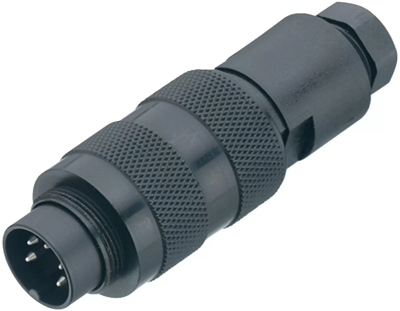

Plug, 16 pole, solder connection, screw locking, straight, 09 0505 25 16

Order No.: 70P1550
EAN: 4099891703639
MPN:
09 0505 25 16
Series: 723
binder
default L
front L
Image may differ
Print
Key Specification:
Version plug
Cable cross-section 0.25 mm²
Pin number 16 pole
Orientation straight
Contact connection solder connection
Show 13 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
29.2145 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
29.21 € *
Price list
Quantity
Price per unit*
1 pcs.
29.2145 €
10 pcs.
27.4652 €
25 pcs.
25.5374 €
50 pcs.
23.7524 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

Male cable connector, 09 0505 25 16, binder

M16 IP67 Male cable connector, Contacts: 16, 4.0-6.0 mm, unshielded, solder, IP67.
Technical specifications
Version plug
Additional parts equipped
Shell Material polyamide
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation straight
Pin number 16 pole
Type of locking screw locking
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
