Plug, 5 pole, solder connection, screw locking, straight, 09 0117 19 05

Order No.: 70P1448
EAN: 4099891702793
MPN:
09 0117 19 05
Series: 723
binder
default L
front L
Image may differ
Print
Key Specification:
Version plug
Cable cross-section 0.75 mm²
Pin number 5 pole
Orientation straight
Contact connection solder connection
Show 13 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
25.7040 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
25.70 € *
Price list
Quantity
Price per unit*
1 pcs.
25.7040 €
10 pcs.
24.1689 €
25 pcs.
22.7171 €
50 pcs.
21.3605 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

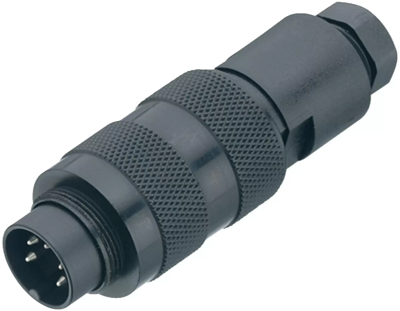

Male cable connector, 09 0117 19 05, binder

M16 IP67 Male cable connector, Contacts: 5 (stereo), 4.0-6.0 mm, unshielded, solder, IP67.
Technical specifications
Version plug
Additional parts equipped
Shell Material polyamide
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 5 pole
Type of locking screw locking
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
