9-1393808-2 | AXICOM
Relay, 2 Form C (NO/NC), 24 V (DC), 890 Ω, 2 A, 36 V (DC), 30 V (AC), monostable, 9-1393808-2
NCNR (non cancelable / non returnable)

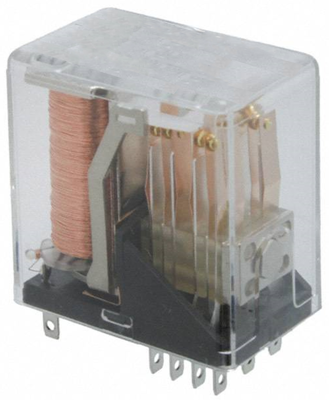

Cradle relay, type TE Connectivity/AXICOM N.

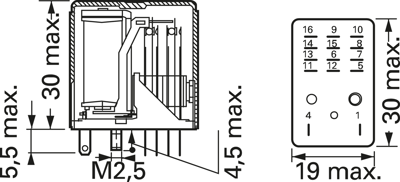

Size: 2, for DC voltage, non-polarized, monostable, pluggable and fixed installation, dust-proof (IP 30) or hermetically sealed (IP 67). Ambient temperatures: –40 to +70 °C. Limit temperature: max. +100 °C. Thermal resistance: 50 K/W. Response/release time: typically 7.5/3.0 ms. Socket descriptions below the Cradle relay.
Dust-proof, single contacts/4 x CO.
Test voltage contact/coil: 1000 VRMS, contact/contact 500 VRMS. Switching voltage: max. 36 VDC/30 VAC. Switching current: max. 0.2 A. Breaking capacity: 5.0 W/5.0 VA. Switching rate: max. 50 switching cycles/s. Contact material: gold.
Technical attributes (type, rated coil voltage, voltage range (min./max.), coil resistance (±15%)): 9-1393808-2, 24 VDC, 14.5/40 VDC, 890 ohm
| Filter | Property | Value |
|---|---|---|
| Contact type | 2 Form C (NO/NC) | |
| switching current | 2 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 890 Ω | |
| Switching Voltage (DC) | 36 V | |
| Switching Voltage (AC) | 30 V | |
| Connection | screw connection | |
| Coil type | monostable | |
| Contact material | Ni |
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85364900 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
