7-1393808-6 | AXICOM
Relay, 4 Form C (NO/NC), 20 V (DC), 550 Ω, 5 A, 250 V (DC), 250 V (AC), monostable, 7-1393808-6
NCNR (non cancelable / non returnable)

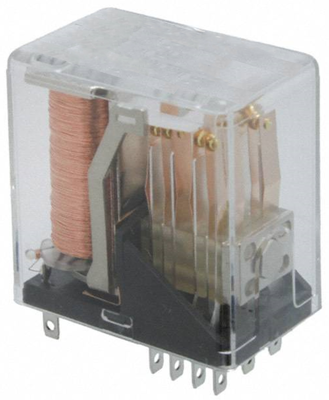

Cradle relay, type TE Connectivity/AXICOM N.

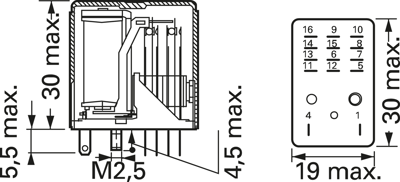

Size: 2, for DC voltage, non-polarized, monostable, pluggable and fixed installation, dust-proof (IP 30) or hermetically sealed (IP 67). Ambient temperatures: –40 to +70 °C. Limit temperature: max. +100 °C. Thermal resistance: 50 K/W. Response/release time: typically 7.5/3.0 ms. Socket descriptions below the Cradle relay.
Dust-proof, single contacts+ 2 x CO.
Test voltage: contacts/coil 1500 VRMS, contact/contact 1000 VRMS. Switching voltage: max. 250 V AC/DC. Switching current: max. 5.0 A. Breaking capacity: voltage-dependent 50 to 140 W/500 VA. Switching rate: max. 10 switching cycles/s. Contact material: silver, gold-plated.
Technical attributes (type, rated coil voltage, voltage range (min./max.), coil resistance (±15%)): 7-1393808-6, 20 VDC, 11.9/32 VDC, 550 ohm
| Filter | Property | Value |
|---|---|---|
| Contact type | 4 Form C (NO/NC) | |
| switching current | 5 A | |
| Coil voltage (DC) | 20 V | |
| Coil resistance | 550 Ω | |
| Switching Voltage (DC) | 250 V | |
| Switching Voltage (AC) | 250 V | |
| Connection | screw connection | |
| Coil type | monostable | |
| Contact material | Au |
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85364900 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
